Solid carbide drills

Six catalog series covering depth ratios from 3×D to 50×D, in diameters from Φ0.10 to Φ25 mm. Through-coolant is available on every series.

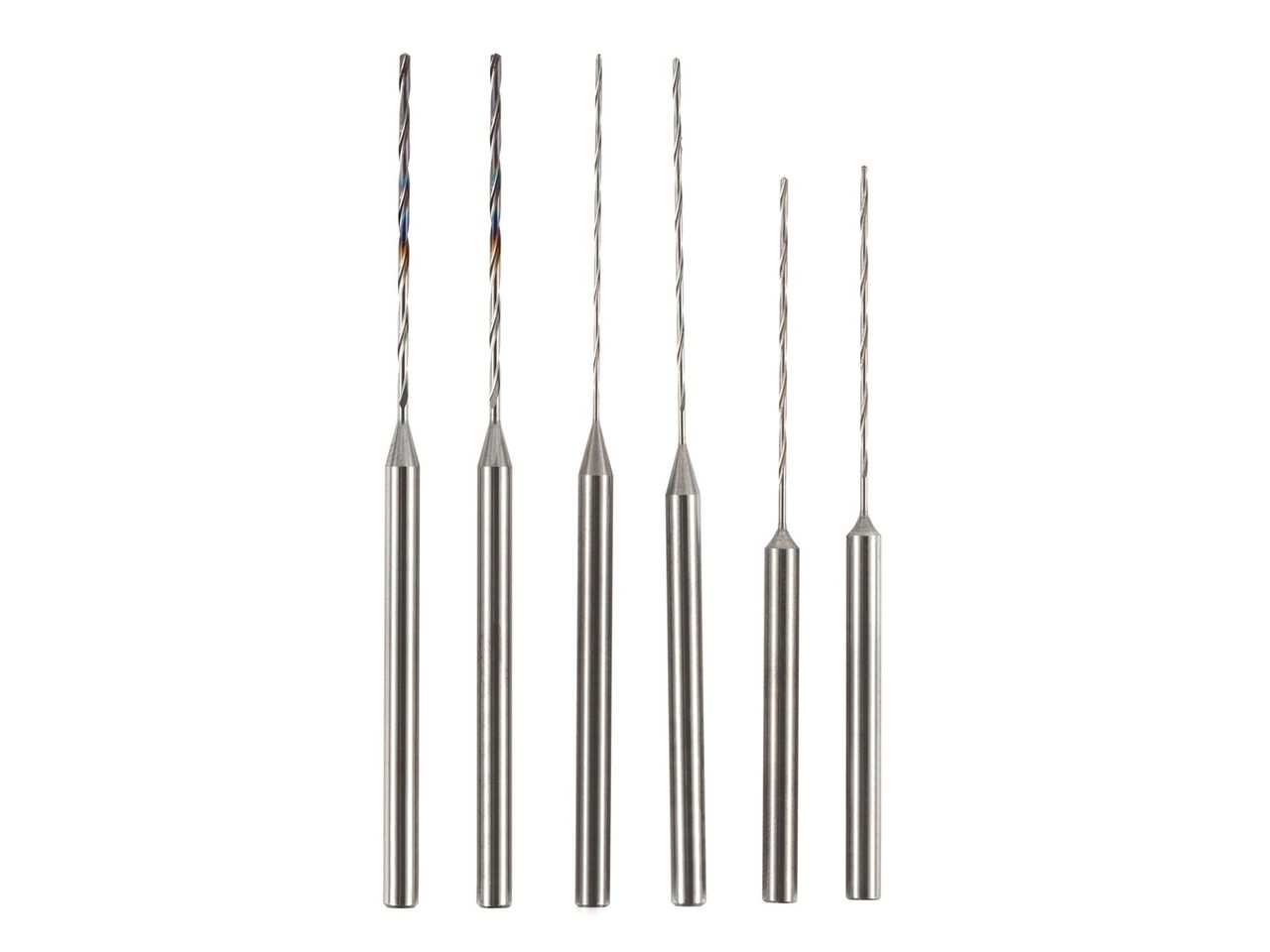

Six slender micro drills with cylindrical shanks — Micro through-coolant drills

Standard range

Show sizes

Series	Diameter	Shank D	Overall length	Coolant	Order codes
RDT general-purpose drills, 3xD	Φ3–25	6–25	62–153	External	221
RDT general-purpose drills, 5xD	Φ3–25	6–25	66–180	External	221
RDT general-purpose drills, 3xD	Φ3–25	6–25	62–153	Through-coolant	220
RDT general-purpose drills, 5xD	Φ3–25	6–25	66–180	Through-coolant	220
RDM drills for stainless steel, 3xD	Φ3–14.9	6–16	62–115	Through-coolant	120
RDM drills for stainless steel, 5xD	Φ3–25	6–25	66–180	Through-coolant	221
RDP flat-bottom drills, external coolant	Φ1–16	3–16	50–120	External	151
RDP flat-bottom drills, through-coolant	Φ1–16	3–16	50–120	Through-coolant	151
RDS deep-hole drills, 8xD	Φ3–20	6–20	80–244	Through-coolant	108
RDS deep-hole drills, 12xD	Φ3–20	6–20	92–310	Through-coolant	115
RDS deep-hole drills, 16xD	Φ3–16	6–16	100–340	Through-coolant	31
RDS deep-hole drills, 20xD	Φ3–16	6–16	110–404	Through-coolant	31
RDS deep-hole drills, 25xD	Φ3–12	6–12	125–373	Through-coolant	21
RDS deep-hole drills, 30xD	Φ3–12	6–12	135–430	Through-coolant	19
RDS deep-hole drills, 40xD	Φ3–11	6–12	180–528	Through-coolant	21
RDS deep-hole drills, 50xD	Φ3–9	6–10	215–525	Through-coolant	18
RNT micro drills	Φ0.1–2.9	3	38	External	29
RNT micro drills	Φ0.6–2.9	3	38	Through-coolant	24
RNT micro drills	Φ2–4	4	50	External	21
RNT micro drills	Φ2–4	4	50	Through-coolant	21
RNS deep micro drills, 8xD	Φ0.6–2.95	3	50–71	Through-coolant	49
RNS deep micro drills, 12xD	Φ0.6–2.9	3	50–83	Through-coolant	23
RNS deep micro drills, 16xD	Φ0.6–2.9	3	60–95	Through-coolant	23
RNS deep micro drills, 20xD	Φ0.6–2.9	3	60–107	Through-coolant	24
RNS deep micro drills, 25xD	Φ0.6–2.9	3	65–122	Through-coolant	24
RNS deep micro drills, 30xD	Φ0.6–2.9	3	65–136	Through-coolant	24

Full size tables for every series are in catalog chapter 01, Solid carbide drills (PDF). No prices.

Deep hole drilling, step by step →

All dimensions in millimetres. Sizes outside these ranges, and inch shank diameters, are quoted to order. Coatings: TiAlN, AlTiN, TiSiN, AlCrN, TiN, DLC.

Planning a longer hole? See our deep-hole drilling application guide for series selection and the information to include with your enquiry.

For small-diameter holes, see our micro drilling application guide for the listed tool families and the information to include with your enquiry.

Need a size that is not listed?

Send the drawing or describe the hole, the material and the tolerance. We reply within one working day.

Send a drawing Request a free sample

Full tables: Flat bottom drills → / Micro drills →

Ordering and delivery

Minimum order: 5 pieces per size
Lead time: Stock items ship in 3 days; custom tools 15–30 working days.
Payment: T/T. Production starts once the deposit is received.
Shipping: By express, air or sea; terms agreed with you.

Free samples — tell us the tool and size, and we will confirm the details with you before shipping.

Request a free sample

Packaging

Every tool is packed on its own: a tip cap protects the cutting edge, and each shank tool sits in its own reusable tube, sized to the shank and length and labelled for your order.
Micro tools (drills and end mills below about Φ3) go in micro tubes that hold the tool without touching the edge.
Inserts and crown drill tips are packed in slotted insert boxes, 10 per box for standard inserts.
Tubes are grouped in 5- or 10-piece boxes, then packed in export cartons sized to the order; reinforced or palletised packing for sea freight on request.

Questions about ordering

What is the minimum order?

5 pieces per size, for standard and made-to-drawing tools.

How long is the lead time?

Stock items ship in 3 days. Custom tools take 15–30 working days after the order and the drawing are confirmed, depending on the tool. Some standard sizes are in stock; we confirm stock when we quote.

How do I pay?

T/T. Production starts once the deposit is received.

How do you ship?

By express, air or sea; terms agreed with you.

Can you make a tool to my drawing?

Yes. Send a drawing, a photo of a sample or the tool you use now. We confirm the geometry and the drawing with you before production; 3D design support and OEM / ODM orders are available.

Are the tools inspected before shipment?

Yes. Tools are inspected before shipment.

What should I send for a quote?

The order code or a drawing, the workpiece material and the quantity. Custom quote checklist →
