Custom and non-standard tooling

Form tools, stepped geometries, special flute counts, PCD tooling and modified standard tools, made to your drawing.

Send a drawing, a sample, or a description of the machining problem. Where a drawing is not available, the material, the feature and the tolerance are enough to start.

What we need in order to quote

	Detail
Workpiece material and hardness	Grade and condition, for example Inconel 718 solution treated, or 4140 at 32 HRC
Feature and dimensions	Diameter, depth, corner radius, thread form, profile geometry
Tolerance	On diameter, on form, and on surface finish where it is critical
Machine and holding	Spindle interface, available shank length, through-coolant pressure if used
Quantity and repeat interval	First order quantity and expected reorder frequency

Lead times

	Working days
Stock items	Within 3
Custom and non-standard	15 to 30, confirmed in writing at the time of order

Non-standard tooling is produced against a drawing you approve in writing before production starts, and ships with an inspection report against that drawing.

Recent custom tools

A few recent made-to-order tools, each produced to the customer's requirement.

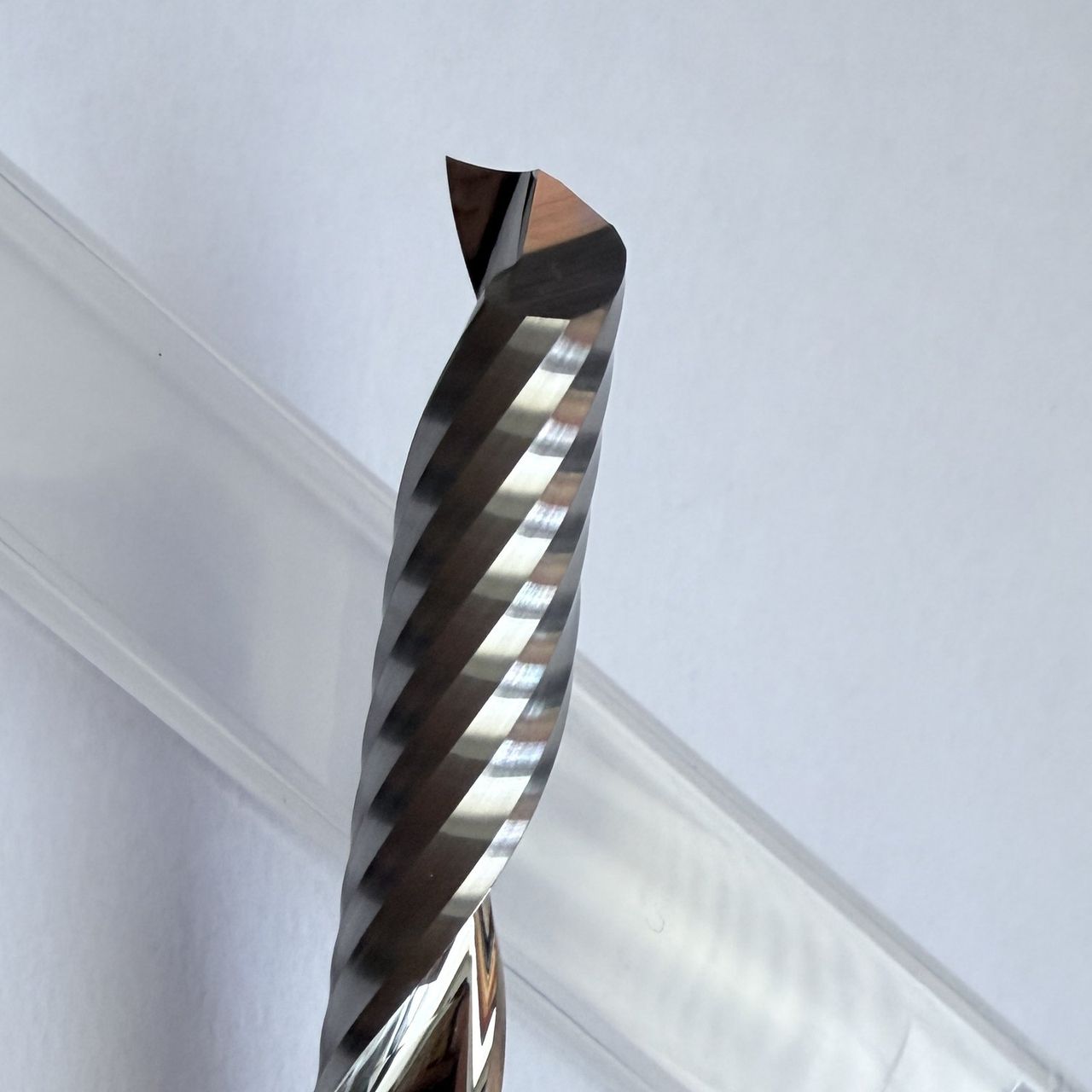

Single-flute carbide end mill with a polished flute — Single-flute cutter for aluminium, supplied to a customer in Europe

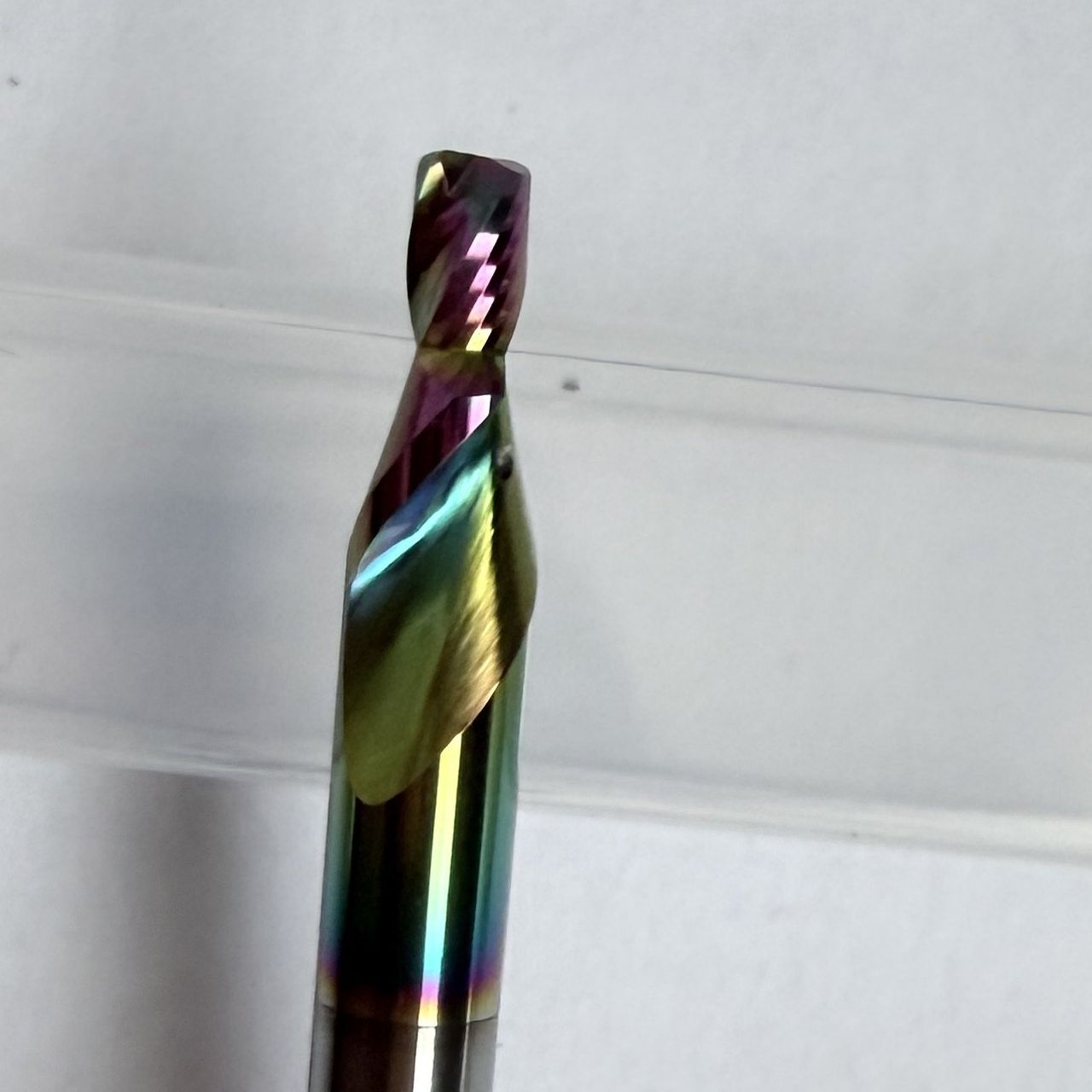

Custom two-flute stepped carbide tool with a multicolour coating — Two-flute stepped tool for an aluminium oil pan

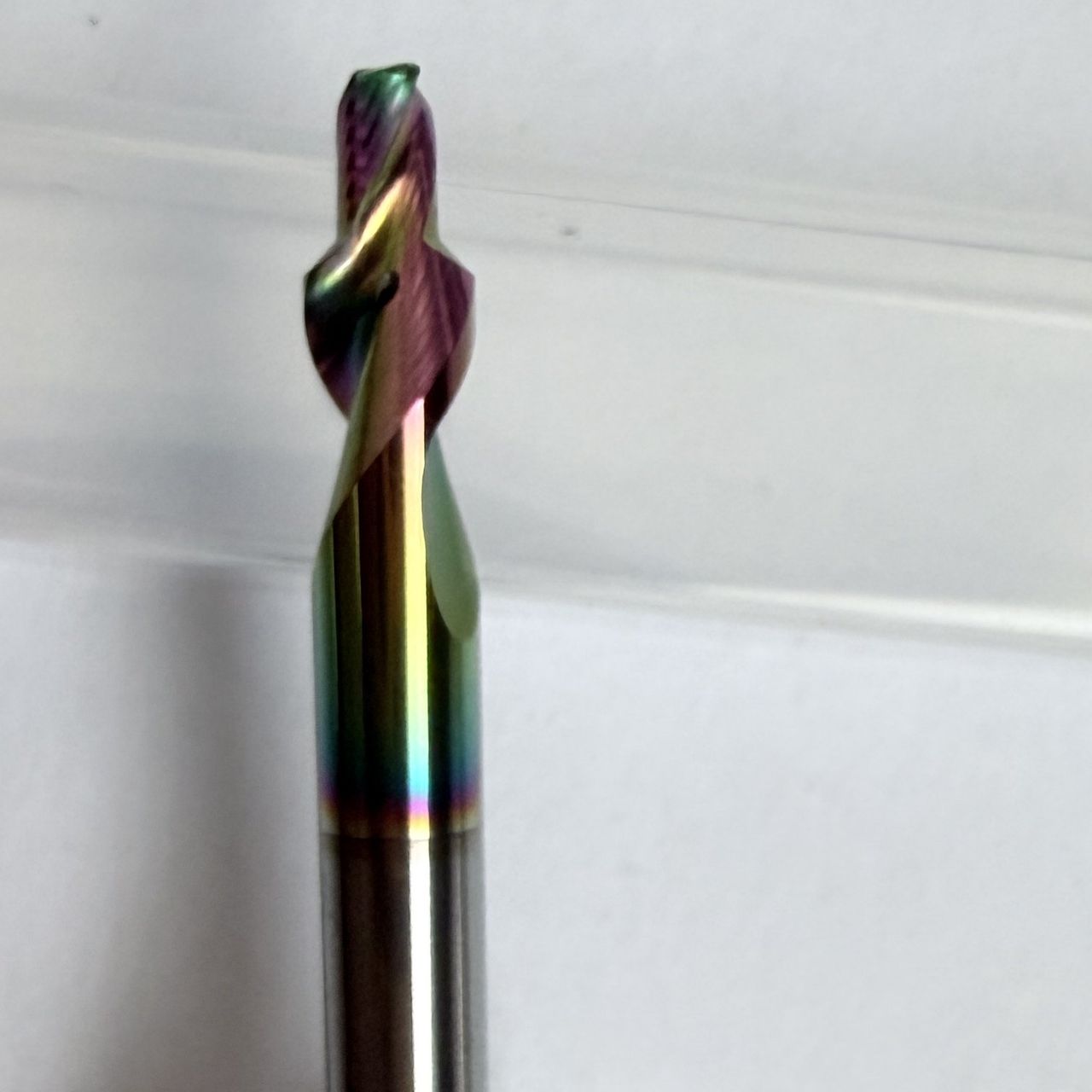

Custom three-flute stepped carbide tool with a multicolour coating — Three-flute stepped tool for an aluminium oil pan

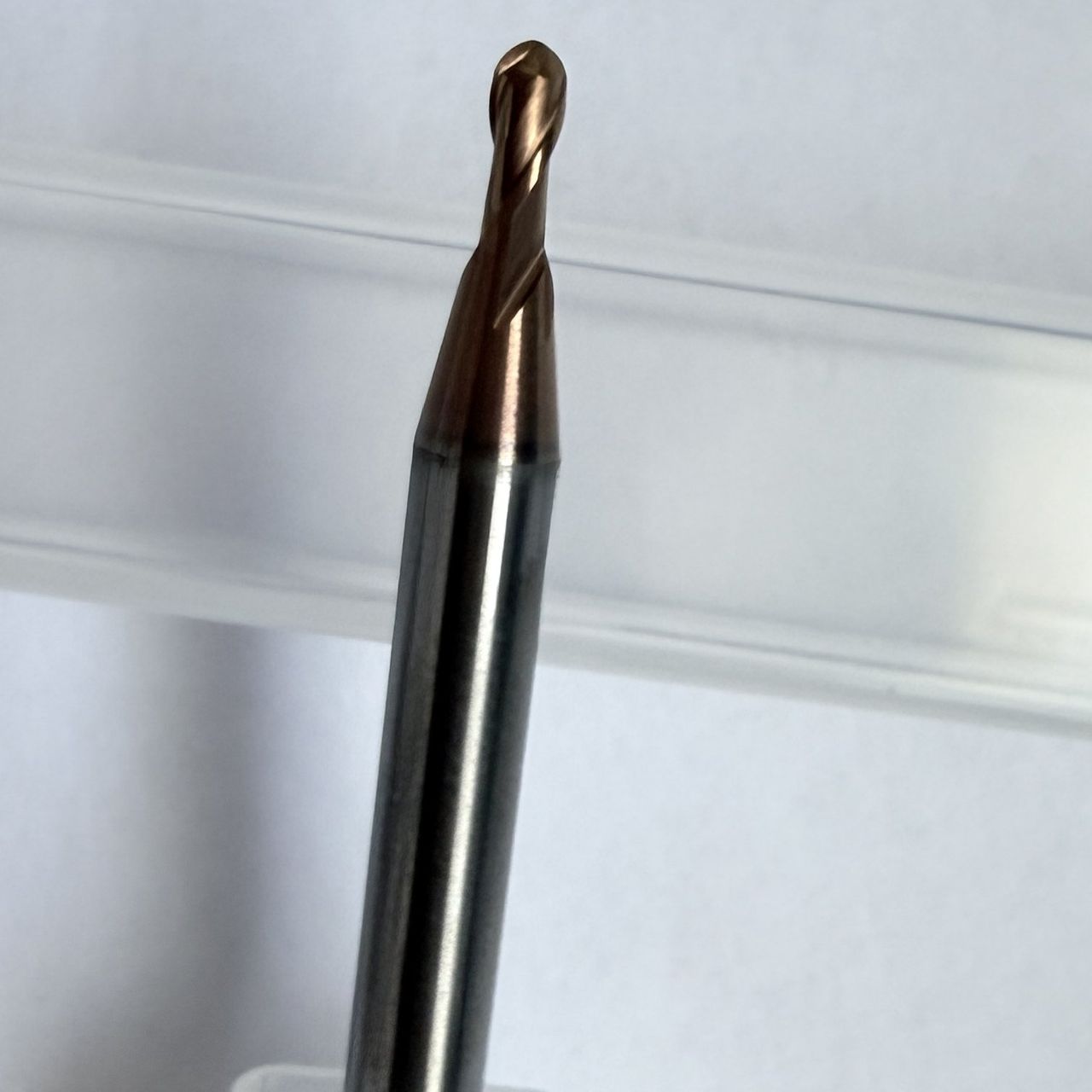

Small bronze-coated ball nose end mill — Ball nose end mill for tungsten heavy alloy

Case: clearing burrs when milling tungsten heavy alloy →

From drawing to tool

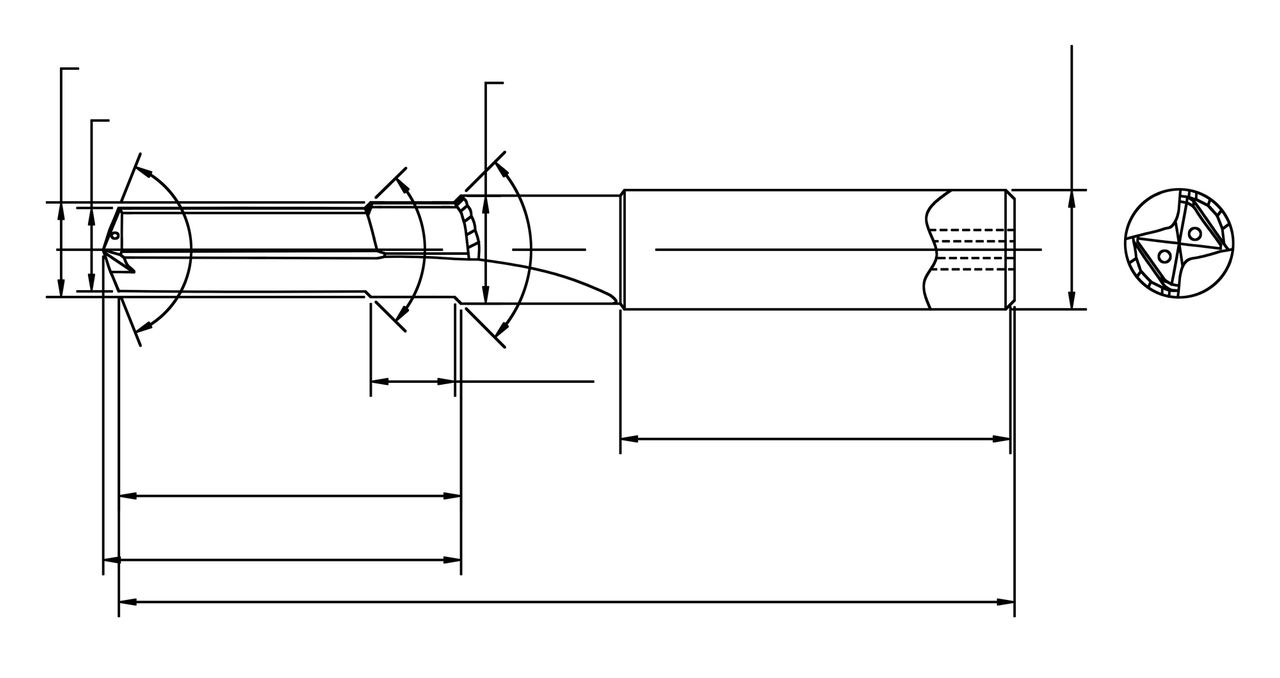

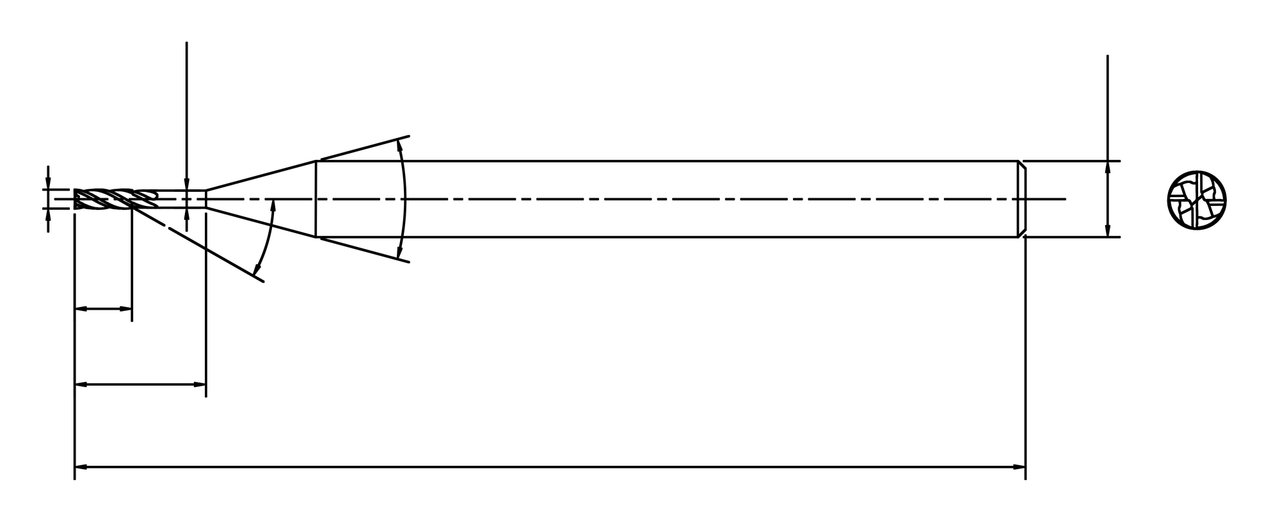

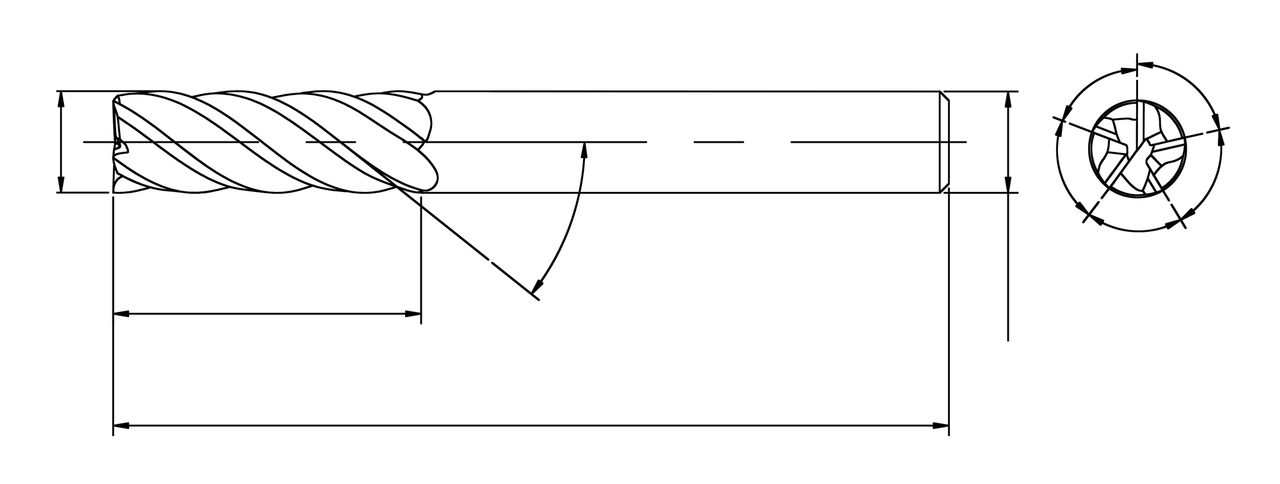

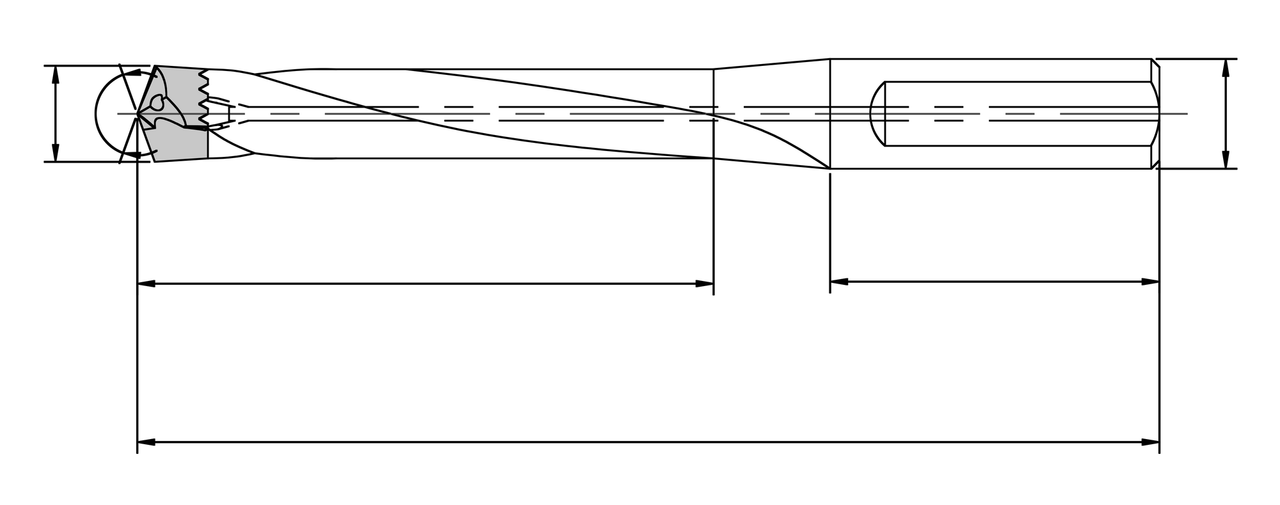

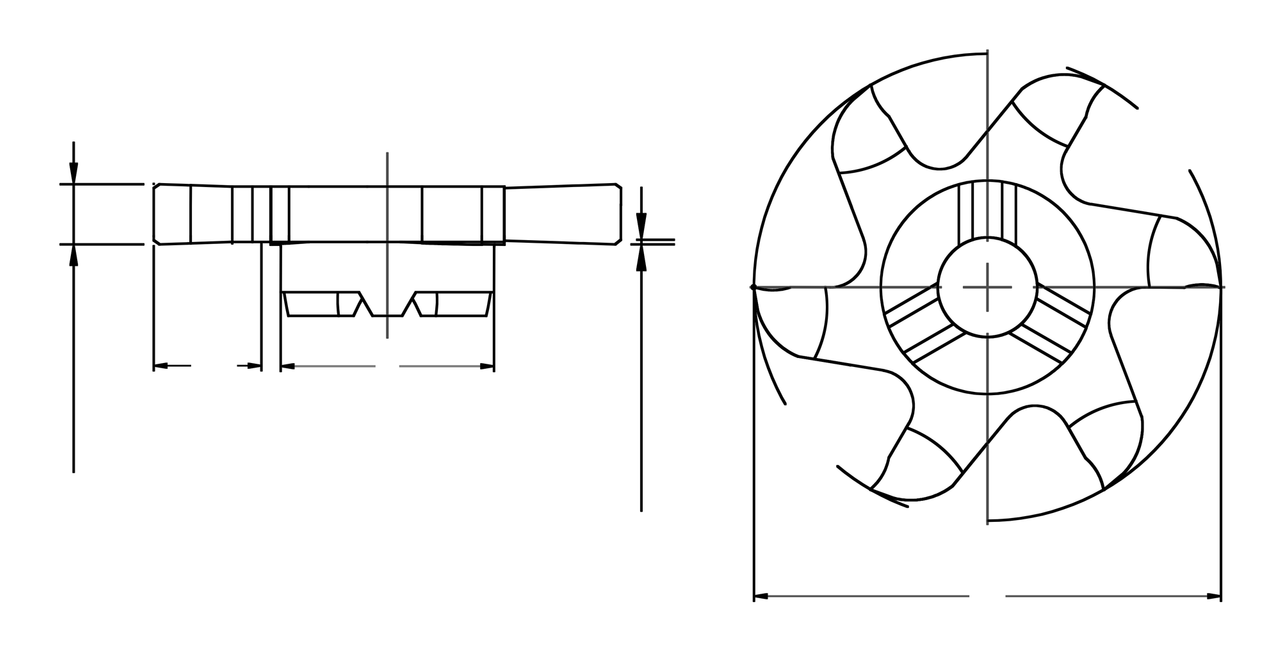

Tool drawings from recent custom orders, shown without dimensions, tolerances or title block. Each tool is made against a drawing like these, approved by the customer before production.
