Indexable insert systems
Two families of replaceable-insert tooling with matched holders. The holder stays in the machine and only the insert is changed. Both are configured to the application — send the profile, the groove width or the thread form and we confirm the insert and holder combination.
Comma-type inserts for small-bore internal grooving

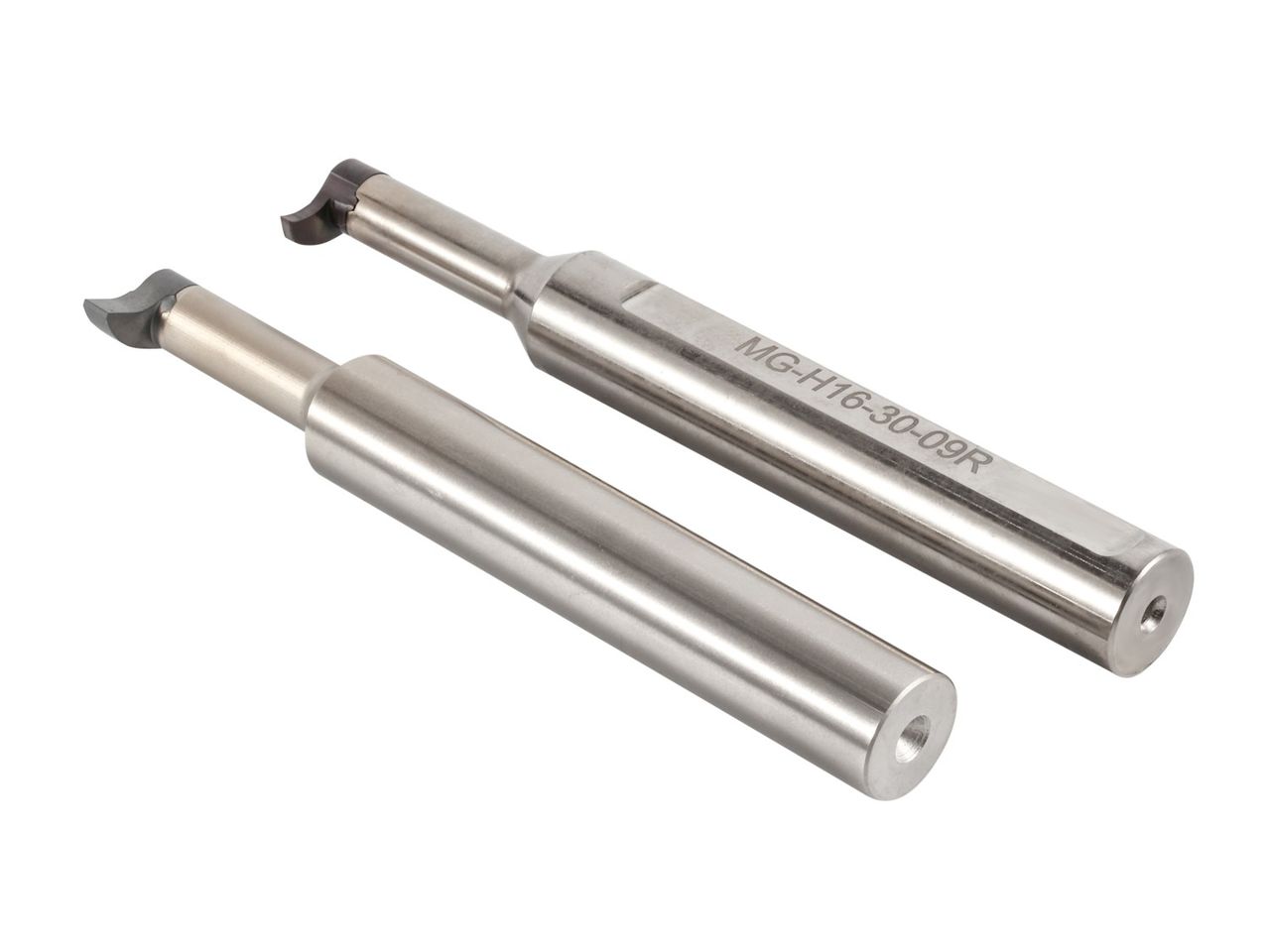

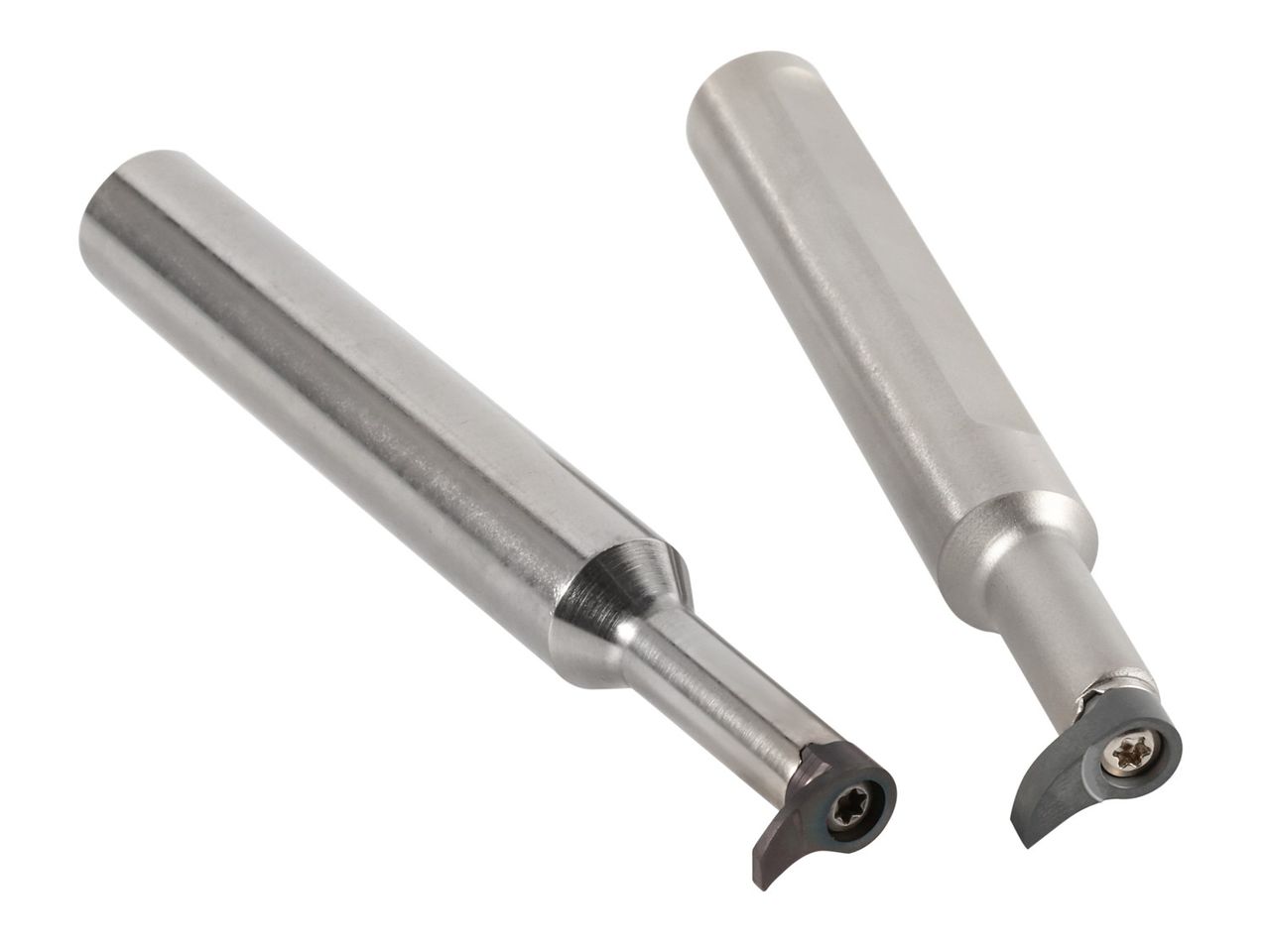

Comma-type inserts are used on lathes and Swiss-type machines for internal grooving and profiling in small bores. The holder stays clamped in the machine; when the edge wears, only the insert is changed.
Grooving and profiling geometries, in widths from 0.5 mm. To confirm an insert and holder, send the bore diameter, the groove width and depth, and the holder interface on your machine.
| Family | Codes |
|---|---|
| Comma-Type Tool | 153 |
| Comma-Type Tool Holder | 8 |
Model codes and the full list are in catalog chapter 06 (PDF).
Form and profile inserts
Includes ISO, metric and Whitworth thread profiles, radius forms and 45° forms.
| Family | Codes |
|---|---|
| Form / Profile Tool | 81 |
| Form / Profile Tool — 471/472 | 15 |
| 45° Form Tool | 10 |
| Radius Form Tool | 33 |
| Metric Form Tool | 7 |
| ISO Form Tool | 14 |
| Whitworth Form Tool | 4 |
| Special Form Tool | 9 |
| Form Tool Holder | 14 |
Full size tables for every series are in catalog chapter 06, Modular tooling (PDF). No prices.
Minimum order quantity 10 pieces per insert code.
Have a profile drawing?
Send the profile, the groove width or the thread form and we will confirm the insert and holder to match your holder interface.
Catalog pages for this range
- Chapter 06 · Modular tooling PDF · 29 pages · 5.2 MB
Edition: October 2026. Free to download, no sign-up. All catalog downloads →
