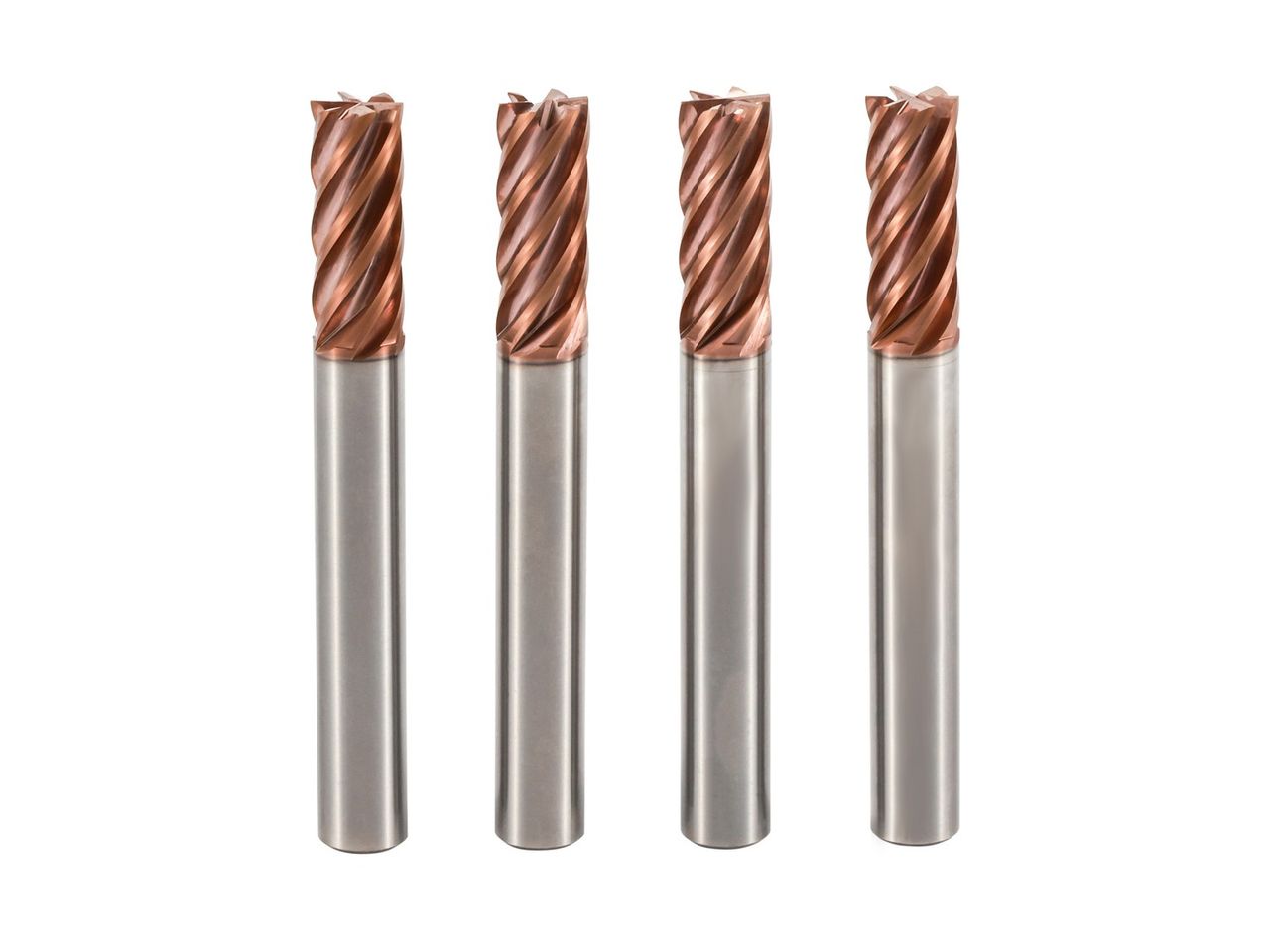

Anti-vibration end mills

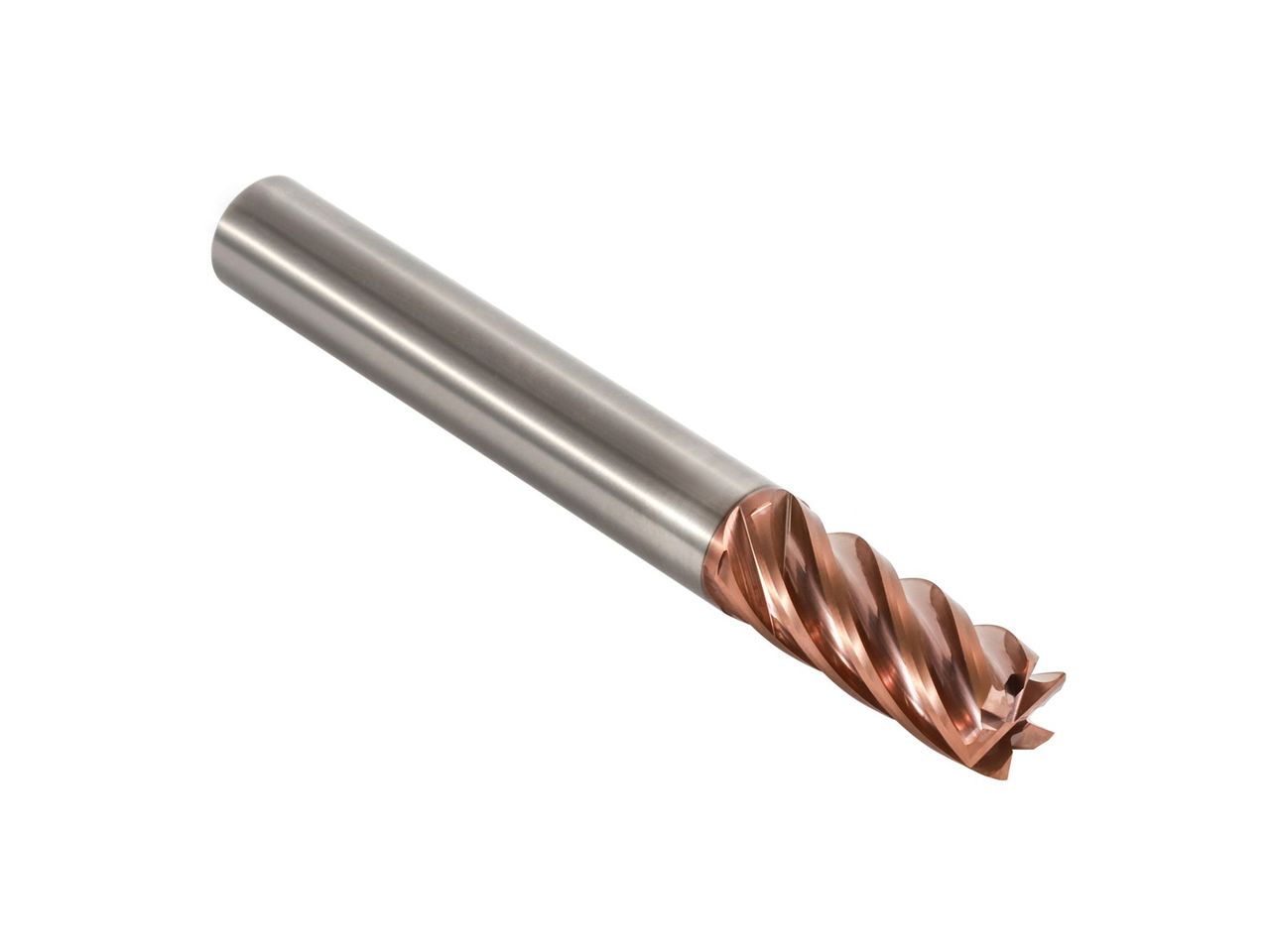

Solid carbide end mills with a variable helix and a variable pitch. Uneven spacing between the cutting edges breaks up the regular vibration pattern that causes chatter, which helps with longer reach, thin walls and less rigid set-ups. Standard sizes cover Φ1–12 mm; most orders are made to the customer's specification.
Two series
KF series
General-purpose geometry, including stainless steel.

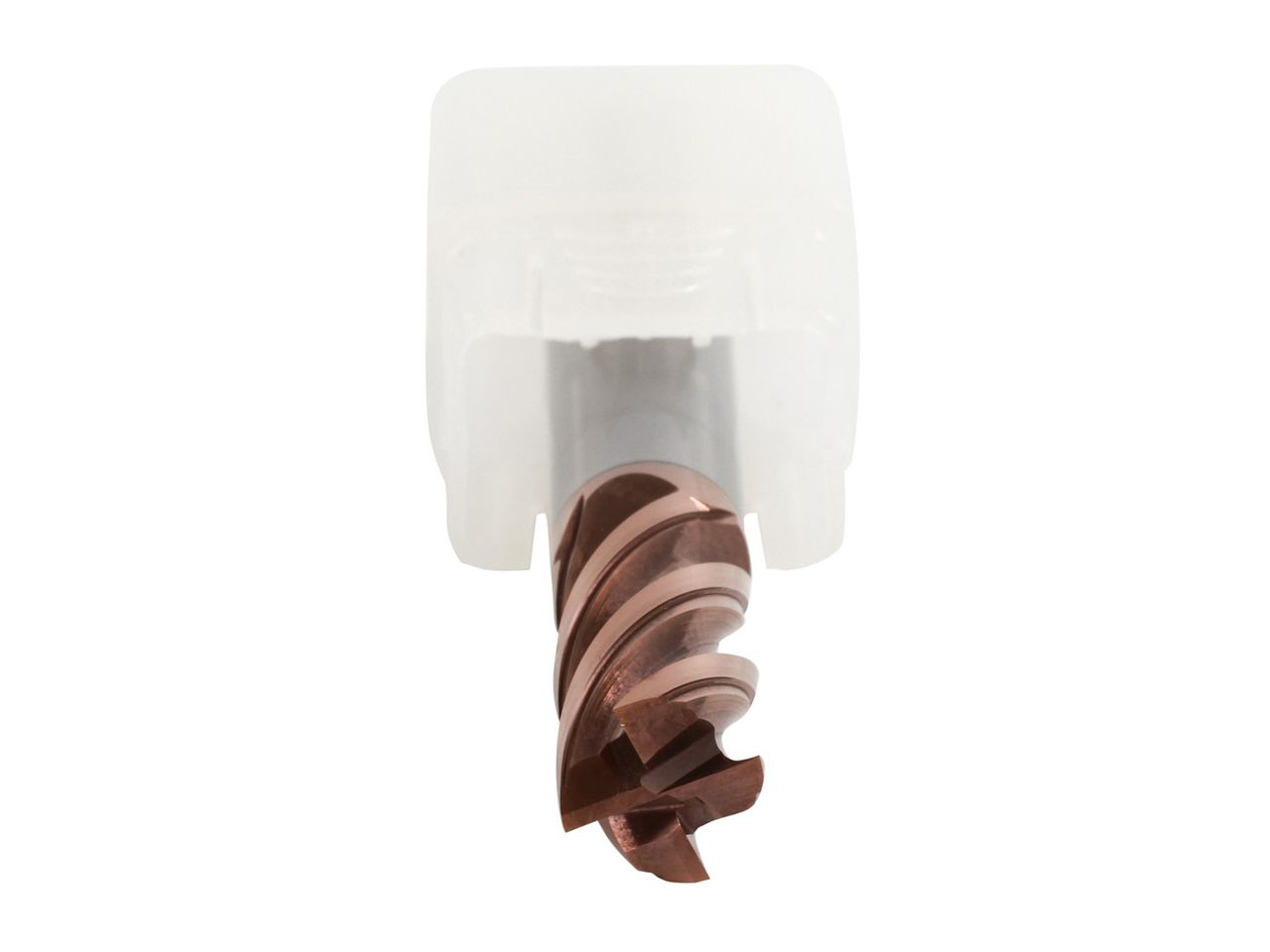

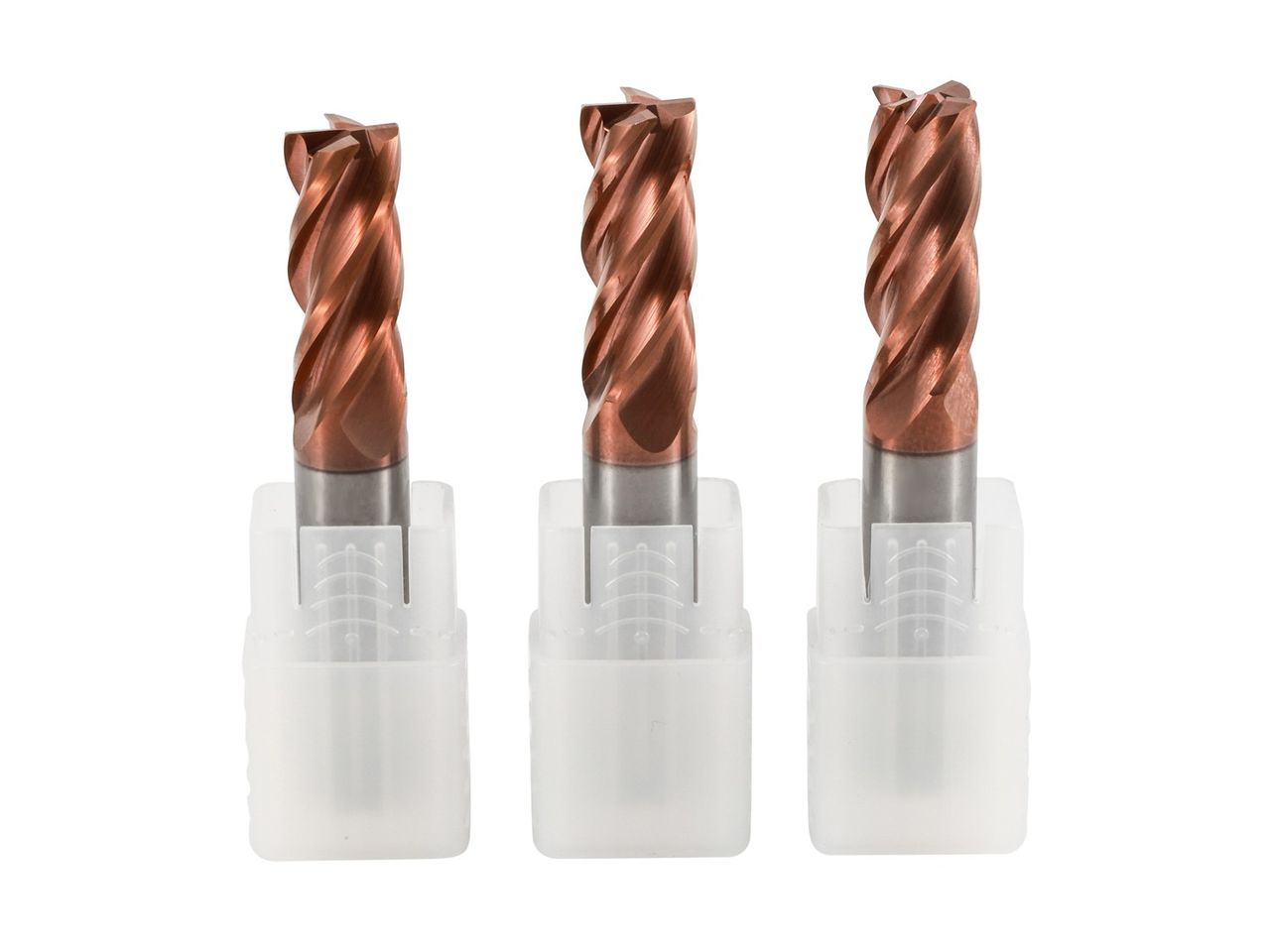

Finishing versions are black coated, roughing versions bronze coated.
| Specification | Available as |
|---|---|
| Φ1-3-Φ4-50L | Roughing |
| Φ2-6-Φ4-50L | Finishing / Roughing |
| Φ3-9-Φ4-50L | Finishing / Roughing |
| Φ4-12-Φ4-50L | Finishing / Roughing |
| Φ5-15-Φ6-50L | Finishing / Roughing |
| Φ6-18-Φ6-50L | Finishing / Roughing |
| Φ8-24-Φ8-60L | Finishing / Roughing |
| Φ10-30-Φ10-75L | Finishing / Roughing |
| Φ12-36-Φ12-75L | Finishing / Roughing |
60° D series
For hardened steel around 60 HRC.
Finishing versions are black coated, roughing versions bronze coated.
| Specification | Available as |
|---|---|
| Φ1-3-Φ4-50L | Finishing / Roughing |
| Φ2-6-Φ4-50L | Finishing / Roughing |
| Φ3-9-Φ4-50L | Finishing / Roughing |
| Φ4-12-Φ4-50L | Finishing / Roughing |
| Φ5-15-Φ6-50L | Finishing / Roughing |
| Φ6-18-Φ6-50L | Finishing / Roughing |
| Φ8-24-Φ8-60L | Finishing / Roughing |
| Φ10-30-Φ10-75L | Finishing / Roughing |
| Φ12-36-Φ12-75L | Finishing / Roughing |
Specification reads cutting diameter – flute length – shank diameter – overall length, in millimetres.
Made to your specification
Most anti-vibration end mills are made to order. We can match the diameter, length of cut, reach, corner form and coating of the end mill you already use — send its specification, a drawing or a sample, with the workpiece material and hardness.
Typical uses
- Side milling and slotting where the tool overhang is long
- Thin-walled parts that ring during cutting
- Stainless steel and other materials prone to chatter
- Finishing passes where surface marks from vibration are a problem
Replacing an end mill that chatters?
Send the tool you use now and the material you cut. We confirm the geometry with you before production.
