End mills

Micro and small-diameter solid carbide end mills in roughing and finishing geometries. Larger diameters, corner radius, ball nose and tapered geometries are quoted to order.

Carbide end mills
Carbide end mills

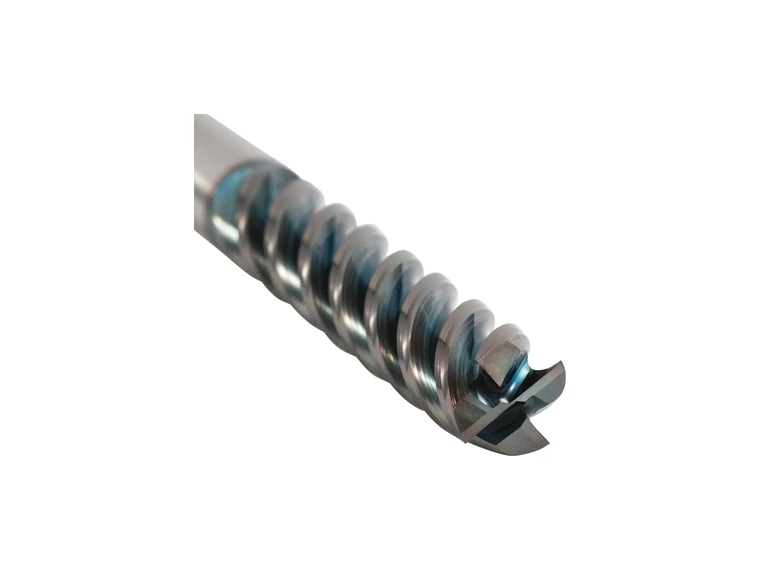

Flute geometry
Flute geometry

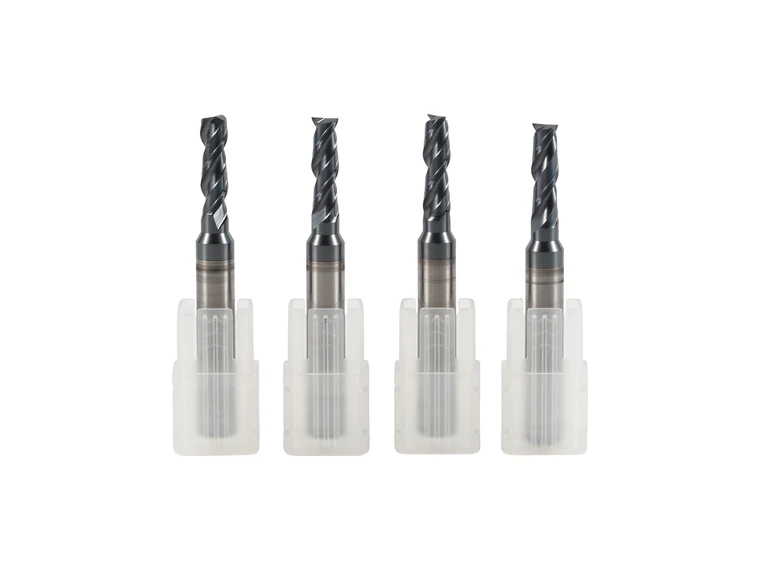

Micro end mills
Micro end mills
Anti-vibration end mills →

End mills for aluminium → · Corner radius end mills →

KF Series End Mill

Cutting diameter (mm) Flute length (mm) Shank (mm) Overall length (mm)
Φ4 12 Φ4 50, 75
Φ4 12 Φ6 50, 75
Φ5 15 Φ6 50, 75, 100
Φ6 18 Φ6 50, 75, 100
Φ8 24 Φ8 60, 75, 100
Φ8 24 Φ10 60
Φ10 30 Φ10 75, 100
Φ12 36 Φ12 75, 100
Φ14 42 Φ14 100, 150
Φ16 48 Φ16 100, 150
Φ18 54 Φ18 100, 150
Φ20 60 Φ20 100, 150

HRC60 Series End Mill

For hardened workpieces around 60 HRC, Φ1–12 mm. Available on request.

Specification Available as
Φ1-3-Φ4-50L Finishing / Roughing
Φ2-6-Φ4-50L Finishing / Roughing
Φ3-9-Φ4-50L Finishing / Roughing
Φ4-12-Φ4-50L Finishing / Roughing
Φ5-15-Φ6-50L Finishing / Roughing
Φ6-18-Φ6-50L Finishing / Roughing
Φ8-24-Φ8-60L Finishing / Roughing
Φ10-30-Φ10-75L Finishing / Roughing
Φ12-36-Φ12-75L Finishing / Roughing

Specification reads cutting diameter – flute length – shank diameter – overall length, in millimetres. Finishing is supplied black coated, roughing bronze coated.

Need a larger diameter or a special geometry?

Anti-vibration end mills (KF and HRC60 series) are covered on their own page. Larger diameters, corner radius, ball nose and tapered end mills are quoted to your specification.

Send a drawing Request a free sample

For aluminium: U-flute end mills

U-flute geometry for aluminium, with the Multicolor coated option listed where available.

Aluminum U-Flute End Mill — 50 Series

Multicolor coated options are available for this series.

Aluminum U-Flute End Mill — 50 Series — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D1350D43F/2F
D1.54.550D43F/2F
D2650D43F/2F
D2.57.550D43F/2F
D3950D33F/2F
D3950D43F/2F
D3.51150D43F
D41250D43F/2F
D41675D43F/2F
D416100D43F/2F
D51550D53F
D52075D53F/2F
D520100D53F/2F
D3950D63F
D41250D63F
D51550D63F
D61850D63F/2F
D62475D63F/2F
D624100D63F/2F
D636150D63F
D82460D83F/2F
D83275D83F/2F
D832100D83F/2F
D855150D83F
D103075D103F/2F
D1040100D103F/2F
D1065150D103F
D123575D123F/2F
D1245100D123F/2F
D1265150D123F
D1445100D143F
D1465150D143F
D1645100D163F
D1665150D163F
D1845100D183F
D1875150D183F
D2045100D203F
D2075150D203F

Aluminum U-Flute End Mill — 55 Series

The 55 Series is our higher-specification line, with higher-grade carbide. Multicolor coated options are available for this series.

Aluminum U-Flute End Mill — 55 Series — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D1350D43F
D1.54.550D43F/2F
D2650D43F
D2.57.550D43F/2F
D3950D33F
D3950D43F
D41250D43F
D41675D43F
D416100D43F
D51550D53F
D52075D63F
D3950D63F
D41250D63F
D51550D63F/2F
D61850D63F
D62475D63F
D624100D63F
D636150D63F
D82460D83F
D83275D83F
D832100D83F
D855150D83F
D103075D103F
D1040100D103F
D1065150D103F
D123575D123F
D1245100D123F
D1265150D123F
D1445100D143F
D1465150D143F
D1645100D163F
D1665150D163F
D2045100D203F
D2075150D203F

Economy U-Flute End Mill for Aluminum

Economy U-Flute End Mill for Aluminum — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D1350D43F
D1.54.550D43F/2F
D2650D43F
D2.57.550D43F/2F
D3950D33F
D3950D43F
D41250D43F
D41675D43F
D416100D43F
D51550D53F
D52075D53F
D3950D63F
D41250D63F
D51550D63F/2F
D61850D63F
D62475D63F
D624100D63F
D636150D63F
D82460D83F
D83275D83F
D832100D83F
D855150D83F
D103075D103F
D1040100D103F
D1065150D103F
D123575D123F
D1245100D123F
D1265150D123F
D1445100D143F
D1465150D143F
D1645100D163F
D1665150D163F
D2045100D203F
D2075150D203F

For steel: U-flute end mills

U-flute geometry for steel, grouped by catalog family.

HRC58 U-Flute End Mill for Steel

HRC58 U-Flute End Mill for Steel — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D1350D44F/2F
D1.53.850D44F
D2550D44F/2F
D2.56.2550D44F
D3850D34F
D3850D44F
D3.51050D44F
D41050D44F/2F
D41275D44F/2F
D416100D44F/2F
D51350D54F
D51350D64F
D61550D64F/2F
D61875D64F
D624100D64F/2F
D82060D84F/2F
D82475D84F/2F
D832100D84F
D102575D104F
D1040100D104F
D123075D124F
D1245100D124F/2F
D1445100D144F
D1645100D164F
D1845100D184F
D2045100D204F

HRC55 U-Flute End Mill for Steel

HRC55 U-Flute End Mill for Steel — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D1350D44F/2F
D1.53.850D44F/2F
D2550D44F/2F
D2.56.2550D44F/2F
D3850D34F
D3850D44F/2F
D3.51050D44F
D41050D44F/2F
D41275D44F/2F
D416100D44F/2F
D51350D54F/2F
D52075D54F
D520100D54F
D3850D64F
D41050D64F
D51350D64F/2F
D61550D64F/2F
D61875D64F/2F
D624100D64F/2F
D636150D64F/2F
D82060D84F/2F
D82475D84F/2F
D832100D84F/2F
D848150D84F/2F
D102575D104F/2F
D1040100D104F/2F
D1055150D104F/2F
D123075D124F/2F
D1245100D124F/2F
D1260150D124F/2F
D1445100D144F/2F
D1465150D144F/2F
D1645100D164F/2F
D1665150D164F/2F
D1845100D184F/2F
D1865150D184F/2F
D2045100D204F/2F
D2075150D204F/2F

HRC60 U-Flute End Mill for Steel

HRC60 U-Flute End Mill for Steel — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D1350D44F/2F
D1.53.850D44F
D2550D44F/2F
D2.56.2550D44F/2F
D3850D34F
D3850D44F/2F
D3.51050D44F
D41050D44F/2F
D41275D44F/2F
D416100D44F/2F
D51350D54F
D51350D64F
D61550D64F
D61875D64F/2F
D624100D64F/2F
D82060D84F/2F
D82475D84F/2F
D832100D84F/2F
D102575D104F/2F
D1040100D104F
D123075D124F/2F
D1245100D124F/2F
D1445100D144F
D1645100D164F
D1845100D184F
D2045100D204F

Economy U-Flute End Mill for Steel

Economy U-Flute End Mill for Steel — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D1350D44F
D1.53.850D44F
D2550D44F
D2.56.2550D44F
D3850D34F
D3850D44F
D3.51050D44F
D41050D44F
D41275D44F
D416100D44F
D51350D64F
D61550D64F
D61875D64F
D624100D64F
D82060D84F
D82475D84F
D832100D84F
D102575D104F
D1040100D104F
D123075D124F
D1245100D124F
D1445100D144F
D1645100D164F
D1845100D184F
D2045100D204F

Corner radius end mills for steel

Corner radius geometries for steel, grouped by catalog family.

HRC60 Corner Radius End Mill for Steel

HRC60 Corner Radius End Mill for Steel — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Radius (mm) Cutting length (mm) Overall length (mm) Shank (mm)
D2R0.5550D4
D3R0.5850D4
D4R0.5/R11050D4
D4R0.5/R11275D4
D4R0.5/R116100D4
D5R0.51350D5
D5R0.51350D6
D6R0.5/R11550D6
D6R0.5/R11875D6
D6R0.5/R124100D6
D8R0.2/R0.5/R12060D8
D8R0.5/R12475D8
D8R0.5/R132100D8
D10R0.5/R12575D10
D10R0.5/R140100D10
D12R0.5/R13075D12
D12R0.5/R145100D12

HRC55 Corner Radius End Mill for Steel

HRC55 Corner Radius End Mill for Steel — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Radius (mm) Cutting length (mm) Overall length (mm) Shank (mm)
D1R0.2350D4
D1.5R0.23.850D4
D2R0.2/R0.5550D4
D2.5R0.2/R0.56.2550D4
D3R0.2/R0.5850D4
D4R0.2/R0.5/R11050D4
D4R0.2/R0.51275D4
D4R0.2/R0.5/R116100D4
D6R0.2/R0.5/R11550D6
D6R0.2/R0.5/R11875D6
D6R0.2/R0.5/R124100D6
D8R0.2/R0.5/R12060D8
D8R0.2/R0.5/R12475D8
D8R0.2/R0.5/R132100D8
D10R0.2/R0.3/R0.5/R1/R2/R32575D10
D10R0.2/R0.5/R1/ R240100D10
D12R0.2/R0.5/R1/ R23075D12
D12R0.2/R0.5/R1/ R245100D12
D12R160150D12
D14R245100D14
D16R0.2/R0.5/R1/ R2/R345100D16

HRC58 Corner Radius End Mill for Steel

HRC58 Corner Radius End Mill for Steel — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Radius (mm) Cutting length (mm) Overall length (mm) Shank (mm)
D1.5R0.23.850D4
D2R0.2550D4
D2.5R0.26.2550D4
D3R0.2/R0.5850D4
D4R0.5/R11050D4
D4R0.5/R11275D4
D4R0.5/R116100D4
D5R0.2/R0.51350D6
D6R0.2/R0.3/ R0.5/R11550D6
D6R0.5/R11875D6
D6R0.5/R124100D6
D8R0.2/R0.5/R12060D8
D8R0.5/R12475D8
D8R0.5/R132100D8
D10R0.5/R12575D10
D10R0.5/R140100D10
D12R0.5/R13075D12
D12R0.5/R145100D12
D16R0.5/R145100D16
D20R145100D20

Roughing end mills

Roughing geometries for steel and aluminium.

Roughing End Mill for Steel

Roughing End Mill for Steel — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D41050D44F
D51550D54F
D61550D64F
D82060D84F
D83275D84F
D102575D104F
D1040100D104F
D123075D124F
D1245100D124F
D1445100D144F
D1645100D164F
D1665150D164F
D2045100D204F
D2075150D204F

Roughing End Mill for Aluminum

Roughing End Mill for Aluminum — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D41250D43F
D51550D53F
D61850D63F
D82460D83F
D83275D83F
D103075D103F
D1040100D103F
D123575D123F
D1245100D123F
D1445100D143F
D1645100D163F
D1665150D163F
D2045100D203F
D2075150D203F

Micro-diameter end mills

Micro-diameter end mills, with the catalog dimensions below.

Micro-Diameter End Mill

Micro-Diameter End Mill — dimensions in mm · Catalog 2026 Supplement (PDF)
Cutting diameter (mm) Cutting length (mm) Overall length (mm) Shank (mm) Flutes
D0.150.350D42F
D0.20.450D42F
D0.30.650D42F
D0.40.850D42F
D0.5150D42F
D0.61.250D42F
D0.71.450D42F
D0.81.650D42F
D0.91.850D42F
D0.20.450D42F
D0.30.650D42F
D0.40.850D42F
D0.5150D42F
D0.61.250D42F
D0.71.450D42F
D0.81.650D42F
D0.91.850D42F

Ball nose end mills

Ball nose end mills →

When to choose another series

Ball nose end mills →

Questions about this range

Can I request a special geometry?

Anti-vibration end mills (KF and HRC60 series) are covered on their own page. Larger diameters, corner radius, ball nose and tapered end mills are quoted to your specification.

Send a drawing

Request a quote Download catalog chapter 04

Ordering and delivery

Minimum order
5 pieces per size
Lead time
Stock items ship in 3 days; custom tools 15–30 working days.
Payment
T/T. Production starts once the deposit is received.
Shipping
By express, air or sea; terms agreed with you.

Free samples — tell us the tool and size, and we will confirm the details with you before shipping.

Request a free sample

Packaging

  • Every tool is packed on its own: a tip cap protects the cutting edge, and each shank tool sits in its own reusable tube, sized to the shank and length and labelled for your order.
  • Micro tools (drills and end mills below about Φ3) go in micro tubes that hold the tool without touching the edge.
  • Inserts and crown drill tips are packed in slotted insert boxes, 10 per box for standard inserts.
  • Tubes are grouped in 5- or 10-piece boxes, then packed in export cartons sized to the order; reinforced or palletised packing for sea freight on request.
Packaging and shipping: one tool per tube with a tip cap, cushioned boxes, taped and numbered export cartons, micro tools held clear of the edge, long tools in rigid cartons, palletised cartons for sea freight
From the single tube to the export carton. Open the image to see it full size.

Questions about ordering

What is the minimum order?

5 pieces per size, for standard and made-to-drawing tools.

How long is the lead time?

Stock items ship in 3 days. Custom tools take 15–30 working days after the order and the drawing are confirmed, depending on the tool. Some standard sizes are in stock; we confirm stock when we quote.

How do I pay?

T/T. Production starts once the deposit is received.

How do you ship?

By express, air or sea; terms agreed with you.

Can you make a tool to my drawing?

Yes. Send a drawing, a photo of a sample or the tool you use now. We confirm the geometry and the drawing with you before production; 3D design support and OEM / ODM orders are available.

Are the tools inspected before shipment?

Yes. Tools are inspected before shipment.

What should I send for a quote?

The order code or a drawing, the workpiece material and the quantity. Custom quote checklist →

How quickly do you reply?

We reply within one working day, Monday to Friday, China time.

Catalog pages for this range

Edition: October 2026. Free to download, no sign-up. All catalog downloads →

Flat bottom drill vs end mill →

WhatsApp
