Thread milling cutters

Catalog thread mills cover metric coarse threads M0.8–M33, fine threads to M48 and, by pitch, sizes to M80; other sizes are made to order. Single-form, 3-tooth and multi-row geometries, plus 3xD / 4xD and long-reach versions, UN, pipe, trapezoidal, ACME and PG threads. Pipe, trapezoidal, ACME and 3-in-1 thread mills can all be ordered. One cutter covers a range of thread sizes at the same pitch, and tool breakage may leave the part recoverable, depending on the damage and application.

Series overview

Family	Catalog tables	Tools listed
Metric single-form thread mills	6	77
Metric 3-tooth thread mills	6	95
Partial-profile thread mills, metric and UN	2	29
Metric multi-row thread mills	1	38
UN thread mills	3	58
Pipe thread mills: NPT / NPTF, BSP, BSPT	5	38
Thread mills for hard and difficult materials	2	28 (+ T series: confirm on inquiry)
Multi-function and 3-in-1 thread mills	3	21
Trapezoidal, ACME and PG thread mills	3	18

Full size tables for every series are in catalog chapter 05, Thread mills (PDF). Pre-hole tables and starting cutting data are in chapter 07, Technical data (PDF). No prices.

Dimensions are in millimetres: d1 cutting diameter, d2 neck, L1 reach, D shank, L overall length. Pitch is in mm for metric threads and in TPI for UN, pipe, ACME and PG threads.

Cutting a thread that is not listed?

Send the thread callout, the material and the depth. Taper and special profiles are made to drawing.

Send a drawing Request a free sample

Metric single-form thread mills

60° Metric Single-Form Thread Mills

Show sizes

60° Metric Single-Form Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Coarse	Fine	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes	Pre-hole Ø (mm)
0.2	M0.8×0.2	—	0.55	0.29	1.5	4	50	2	0.6
0.25	M1×0.25	M1.5×0.25	0.7	0.375	3.1	4	50	3	0.75
0.25	M1.2×0.25	M1.4×0.25	0.9	0.575	3.8	4	50	3	0.95
0.3	M1.4×0.3	—	1.05	0.66	4	4	50	3	1.1
0.35	M1.6×0.35	—	1.2	0.745	5	4	50	3	1.25
0.35	—	M1.8×0.35/M2.0×0.35	1.4	0.945	5.6	4	50	3	1.45
0.4	M2×0.4	—	1.54	1.02	6	4	50	3	1.6
0.45	M2.5×0.45	—	1.96	1.375	6.5	4	50	3	2.1
0.5	M3×0.5	—	2.4	1.75	8	4	50	3	2.5
0.5	—	M8×0.5	6	5.35	20	6	50	3	7.5
0.6	M3.5×0.6	—	2.75	1.97	10	4	50	3	2.9
0.7	M4×0.7	—	3.15	2.24	10	4	50	3	3.3
0.75	M4.5×0.75	—	3.5	2.525	12	4	50	3	3.8
0.75	—	M8×0.75	6	5.025	20	6	50	3	7.3
0.8	M5×0.8	—	4	2.96	12	4	50	3	4.2
1	M6×1	—	4.8	3.5	15	6	50	3	5
1.25	M8×1.25	—	6	4.375	20	6	50	3	6.8
1.25	M8×1.25	—	6.5	4.87	25	8	60	3	6.8
1.5	M10×1.5	—	8	6.05	25	8	60	3	8.5
1.5	M10×1.5	—	8.2	6.25	31	10	75	4	8.5
1.5	—	M14×1.5	12	10.05	30	12	75	4	12.5
1.75	M12×1.75	—	10	7.725	30	10	75	4	10.3
2	M14×2	—	10	7.4	36	10	75	4	12
2	M14×2	—	11.6	9	45	12	75	4	12
2	M16×2	—	12	9.4	45	12	75	4	14
2	M16×2	—	13.6	11	50	14	100	5	14
2.5	M18-M20×2.5	—	14	10.75	48	14	90	5	15.5
2.5	M20×2.5	—	16	12.75	61	16	100	5	17.6
3	M24×3.0	—	14	10.1	48	14	90	5	21
3.5	M30×3.5	—	16	11.45	50	16	90	5	26.5

60° M Single-Form, 3D

Show sizes

60° M Single-Form, 3D — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.3	M1.4×0.3	1.05	0.6	4.4	4	50	3
0.35	M1.6×0.35	1.2	0.745	5	4	50	3
0.4	M2×0.4	1.5	1.02	6.2	4	50	3
0.45	M2.5×0.45	1.95	1.375	7.7	4	50	3
0.5	M3×0.5	2.4	1.75	9.2	4	50	3
0.7	M4×0.7	3.15	2.14	13	4	50	3
0.8	M5×0.8	3.9	2.96	16	4	50	3
1	M6×1.0	4.85	3.5	20	6	50	4

60° M Single-Form, 4D

Show sizes

60° M Single-Form, 4D — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.3	M1.4×0.3	1.05	0.6	5.9	4	50	3
0.35	M1.6×0.35	1.2	0.745	6.8	4	50	3
0.4	M2×0.4	1.5	1.02	8.4	4	50	3
0.45	M2.5×0.45	1.95	1.375	10.5	4	50	3
0.5	M3×0.5	2.4	1.75	12.5	4	50	3
0.7	M4×0.7	3.15	2.14	16.7	4	50	3
0.8	M5×0.8	3.9	2.96	20.8	4	50	3
1	M6×1.0	4.85	3.5	25	6	50	4

60° M Long Single-Form, 75L

Show sizes

60° M Long Single-Form, 75L — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.3	M1.4×0.3	1.05	0.66	5	4	75	3
0.35	M1.6×0.35	1.2	0.745	6	4	75	3
0.4	M2×0.4	1.55	0.9	8	4	75	3
0.45	M2.5×0.45	1.96	1.3	10	4	75	3
0.5	M3×0.5	2.35	1.6	12	4	75	3
0.7	M4×0.7	3.15	2.1	16	4	75	3
0.8	M5×0.8	3.9	2.8	20	4	75	3
1	M6×1	4.8	3.4	24	6	75	3
1.25	M8×1.25	6	4.2	32	6	75	3
1.5	M10×1.5	7.7	5.6	35	8	75	3

60° M Long Single-Form, 100L

Show sizes

60° M Long Single-Form, 100L — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.3	M1.4×0.3	1.05	0.66	4	4	100	3
0.35	M1.6×0.35	1.2	0.745	4.5	4	100	3
0.4	M2×0.4	1.55	0.9	6	4	100	3
0.45	M2.5×0.45	1.96	1.3	6.5	4	100	4
0.5	M3×0.5	2.35	1.6	8	4	100	4
0.7	M4×0.7	3.15	2.1	10	4	100	4
0.8	M5×0.8	3.9	2.8	12	4	100	4
1	M6×1	4.8	3.4	15	6	100	4
1.25	M8×1.25	6	4.2	20	6	100	4
1.5	M10×1.5	7.7	5.6	25	8	100	4
1.75	M12×1.75	9.6	7.3	30	10	100	4
2	M14×2	10	7.3	36	10	100	4
2.5	M18×2.5	12	8.75	38	12	100	4
3	M24×3.0	14	10.1	48	14	100	6
3.5	M30×3.5	16	11.45	50	16	100	6

60° Metric Single-Form, Large Shank

Show sizes

60° Metric Single-Form, Large Shank — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.35	M1.6×0.35	1.2	0.75	5	6	50	3
0.4	M2×0.4	1.5	0.98	6.2	6	50	3
0.45	M2.5×0.45	1.95	1.36	7.7	6	50	3
0.5	M3×0.5	2.4	1.75	9	6	50	3
0.7	M4×0.z	3.15	2.24	12	6	50	3
0.8	M5×0.8	4	2.96	15	6	50	3

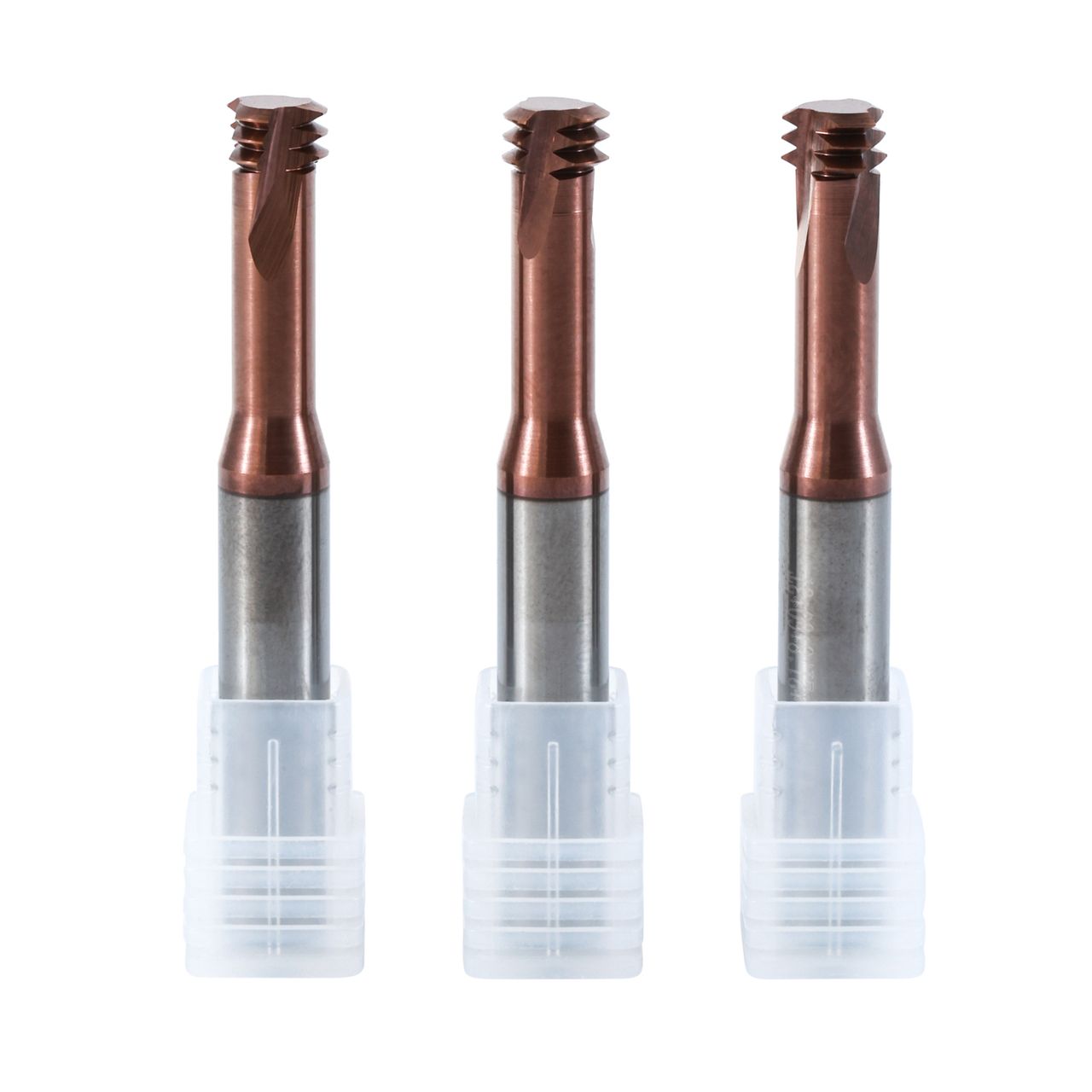

Metric 3-tooth thread mills

60° Metric 3-Tooth Thread Mills

Show sizes

60° Metric 3-Tooth Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Coarse	Fine	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes	Pre-hole Ø (mm)
0.25	M1×0.25	—	0.7	0.375	2.8	4	50	3	0.75
0.25	M1.2×0.25	—	0.9	0.575	3	4	50	3	0.95
0.3	M1.4×0.3	—	1.05	0.66	3.2	4	50	3	1.1
0.35	M1.6×0.35	M1.8×0.35	1.2	0.745	4	4	50	3	1.25
0.35	—	—	1.41	0.955	4.1	4	50	3	1.45
0.4	M2×0.4	—	1.54	1.02	4.4	4	50	3	1.6
0.45	M2.5×0.45	—	1.96	1.375	5.3	4	50	3	2.1
0.5	M3×0.5	M3.5×0.5	2.4	1.75	6.4	4	50	3	2.5
0.5	—	M4-M6×0.5	3	2.35	8.6	4	50	3	3.5
0.5	—	M6-M10×0.5	4.8	4.15	13	6	50	3	5.5
0.5	—	M10-M16×0.5	8	7.35	21.8	8	60	3	9.5
0.6	M3.5×0.6	—	2.75	1.94	7.4	4	50	3	2.9
0.7	M4×0.7	—	3.15	2.24	8.6	4	50	3	3.3
0.75	M4.5×0.75	—	3.5	2.525	9.5	4	50	3	3.8
0.75	—	M6×0.75	4.8	3.825	13	6	50	3	5.3
0.75	—	M8×0.75	6	5.025	16	6	50	3	7.3
0.75	—	M10×0.75	8	7.025	21.8	8	60	3	9.3
0.8	M5×0.8	—	4	2.96	12	4	50	3	4.2
1	M6×1	—	4.8	3.5	13	6	50	3	5
1	—	M8×1	6	4.7	16	6	50	3	7
1	—	M10×1	8	6.7	21.8	8	60	3	9
1	—	M12×1	10	8.7	25	10	75	4	11
1	—	M14×1	10	8.7	28	10	75	4	13
1	—	M16×1	12	10.7	30	12	75	4	15
1	—	M20-M40×1	15.8	14.5	40	16	90	4	19
1.25	M8×1.25	—	6	4.375	16	6	50	3	6.8
1.25	M8×1.25	—	6.5	4.87	20	8	60	3	6.8
1.25	—	M10×1.25	8	6.375	21.8	8	60	3	8.8
1.25	—	M12×1.25	10	8.375	25	10	75	4	10.8
1.25	—	M14×1.25	10	8.375	28	10	75	4	12.8
1.25	—	M16-M40×1.25	12	10.375	30	12	75	4	14.8
1.5	M10×1.5	—	8	6.05	21.8	8	60	3	8.5
1.5	M10×1.5	—	8.2	6.25	21.8	10	75	4	8.8
1.5	—	M12×1.5	10	8.05	25	10	75	4	10.6
1.5	—	M14×1.5	12	10.05	28	12	75	4	12.6
1.5	—	M16×1.5	12	10.05	30	12	75	4	14.6
1.5	—	M20-M40×1.5	15.8	13.85	40	16	90	4	18.6
1.75	M12×1.75	—	10	7.725	25	10	75	4	10.3
2	M14×2	—	10	7.4	25	10	75	4	12.1
2	M14×2	—	11.6	9	29	12	74	4	12.1
2	M16×2	—	12	9.4	27	12	75	4	14.1
2	M16×2	—	13.6	11	50	14	100	4	14.1
2	—	M20-M40×2	15.8	13.2	40	16	90	4	18.1
2.5	M18-M20×2.5	—	14	10.75	40	14	90	4	15.5
2.5	M20×2.5	—	16	12.75	61	16	100	4	17.6
3	M24×3.0	—	16	12.1	45	16	90	4	21.2
3.5	M30×3.5	—	16	11.45	48	16	90	4	26.5

60° M 3-Tooth, 3D

Show sizes

60° M 3-Tooth, 3D — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.3	M1.4×0.3	1.05	0.66	4.2	4	50	3
0.35	M1.6×0.35	1.2	0.745	4.8	4	50	3
0.4	M2×0.4	1.55	1.02	6	4	50	3
0.45	M2.5×0.45	1.95	1.375	7.5	4	50	3
0.5	M3×0.5	2.4	1.75	9	4	50	3
0.7	M4×0.7	3.15	2.14	12	4	50	3
0.8	M5×0.8	3.9	2.96	15	4	50	3
1	M6×1.0	4.8	3.5	18	6	50	3

60° M 3-Tooth, 4D

Show sizes

60° M 3-Tooth, 4D — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.3	M1.4×0.3	1.05	0.66	5.6	4	50	3
0.35	M1.6×0.35	1.2	0.745	6.4	4	50	3
0.4	M2×0.4	1.55	1.02	8	4	50	3
0.45	M2.5×0.45	1.95	1.375	10	4	50	3
0.5	M3×0.5	2.4	1.75	12	4	50	3
0.7	M4×0.7	3.15	2.14	16	4	50	3
0.8	M5×0.8	3.9	2.96	20	4	50	3
1	M6×1.0	4.8	3.5	24	6	60	3

60° M Long 3-Tooth, 75L

Show sizes

60° M Long 3-Tooth, 75L — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.35	M1.6×0.35	1.2	0.745	6.4	4	75	3
0.4	M2×0.4	1.55	1.03	8	4	75	3
0.45	M2.5×0.45	1.96	1.375	10	4	75	3
0.5	M3×0.5	2.4	1.75	12	4	75	3
0.7	M4×0.7	3.15	2.24	16	4	75	3
0.8	M5×0.8	4	2.96	20	4	75	3
1	M6×1	4.8	3.5	15	6	75	3
1.25	M8×1.25	6	4.375	32	6	75	3
1.5	M10×1.5	8	6.05	35	8	75	—

60° M Long 3-Tooth, 100L

Show sizes

60° M Long 3-Tooth, 100L — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.35	M1.6×0.35	1.2	0.745	6.4	4	100	3
0.35	M1.6×0.35	1.2	0.745	3.2	6	100	3
0.4	M2×0.4	1.55	1.03	8	4	100	3
0.4	M2×0.4	1.55	1.03	4	6	100	3
0.45	M2.5×0.45	1.96	1.375	10	4	100	3
0.45	M2.5×0.45	1.96	1.375	5	6	100	3
0.5	M3×0.5	2.4	1.75	12	4	100	3
0.5	M3×0.5	2.4	1.75	6	6	100	3
0.7	M4×0.7	3.15	2.24	16	4	100	3
0.7	M4×0.7	3.15	2.24	8	6	100	3
0.8	M5×0.8	4	2.96	20	4	100	3
0.8	M5×0.8	4	2.96	10	6	100	3
1	M6×1	4.8	3.5	12	6	100	3
1.25	M8×1.25	6	4.375	16	6	100	4
1.5	M10×1.5	8	6.05	21.8	8	100	4
1.75	M12×1.75	10	7.725	24	10	100	4
2	M14×2	10	7.4	37	10	100	4

60° Metric 3-Tooth, Large Shank

Show sizes

60° Metric 3-Tooth, Large Shank — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.35	M1.6×0.35	1.2	0.75	3.3	6	50	3
0.4	M2×0.4	1.54	1.02	4.4	6	50	3
0.45	M2.5×0.45	1.96	1.37	5.3	6	50	3
0.5	M3×0.5	2.4	1.75	6.4	6	50	3
0.7	M4×0.7	3.15	2.24	8.6	6	50	3
0.8	M5×0.8	4	2.96	12	6	50	3

Partial-profile thread mills, metric and UN

60° M/UN Partial-Profile, 3D

Show sizes

60° M/UN Partial-Profile, 3D — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
TPI	Pitch (mm)	Coarse	Fine	Dia. d1 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
—	0.25	M1×0.25	M1.4×0.25	0.7	3.1	4	50	3
—	0.25	M1.2×0.25	M1.4×0.25	0.9	3.8	4	50	3
80	0.3	M1.4×0.3	—	1.05	4.4	4	50	3
72-80	0.35	M1.6×0.35	M1.7-M1.8×0.35	1.2	5	4	50	3
56-64	0.4	M2×0.4	—	1.5	6.2	4	50	3
48-56	0.45	M2.5×0.45	M4-M5×0.45	1.95	7.7	4	50	3
48-56	0.5	M3×0.5	—	2.4	9.2	4	50	3
40	0.6	M3.5×0.6	—	2.75	12	4	50	3
—	0.7	M4×0.7	—	3.15	13	4	50	3
32-56	0.5-0.8	M5×0.8	M5×0.5, M5×0.75	3.9	16	4	50	3
24-56	0.5-1.0	M6×1	M6×0.5, M6×0.75	4.85	20	6	60	4
20-48	0.5-1.25	M8×1.25	M7×0.5, M7×0.75, M7.5×1	5.9	25	6	60	4
24-56	0.5-1.0	—	M10.5×0.5, M11×0.75, M11×1	9.9	35	10	75	5
16-24	1.0-1.5	M10×1.5	M10×1, M10×1.25	7.9	32	8	60	5
14-24	1.0-1.75	M12×1.75	M12×1,, M12×1.25,, M12×1.5	9.9	38	10	75	5
14-24	1.0-1.75	M14-M16×2	M13.5×1, M14×1.25, M14×1.5	11.9	45	12	75	5
12-20	1.25-2.0	—	—	11.6	45	12	75	5
10-18	1.5-2.5	M18×2.5	—	13.9	50	14	90	6
10-18	1.5-2.5	M20×2.5	—	13.9	55	14	90	6
10-18	2.0-3.0	M24×3	—	13.9	65	16	100	6

60° Partial-Profile, UN / M

Show sizes

60° Partial-Profile, UN / M — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
TPI	Pitch (mm)	Coarse	Fine	UN sizes	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
32-56	0.5-0.8	M5×0.8	M5×0.5, M5×0.75	No.10-56UNS, No.10-48UNS, No.10-40UNS, M5x0.75	3.9	2.8	16	4	50	4
24-56	0.5-1.0	M6×1.0	M6×0.5, M6×0.75	No.12-56UNS, No.12-48UNS, 1/4-40UNS, 1/4-36UNS, 1/4-32UNEF, 1/4-28UNF, 1/4-27UNS, 1/4-24UNS	4.85	3.5	20	6	60	5
20-48	0.5-1.25	M8×1.25	M7×0.5, M7×0.75, M7.5×1.0	5/16-48UNS, 5/16-40UNS, 5/16-36UNS, 5/16-36UNEF, 5/16-28UN, 5/16-27UNS, 5/16-24UNS, 5/16-20UNS	5.9	4.2	25	6	60	5
24-56	0.5-1.0	—	M10×0.5, M11×0.75, M11×1.0	7/16-32UNS, 7/16-28UNEF, 7/16-27UNS, 7/16-24UNS	9.8	8.5	35	10	75	6
13-24	1.0-1.50	M10×1.5	M10×1.0, M10×1.25	3/8-24UNF, 3/8-20UNS, 7/16-18UNS, 7/16-16UNS	7.9	5.8	32	8	75	6
14-24	1.0-1.75	M12×1.75	M12×1.0, M12×1.25, M12×1.5	1/2-24UNS, 1/2-20UNS, 1/2-18UNS, 1/2-16UNS, 1/2-14UNS	9.9	7.6	38	10	75	6
14-24	1.0-2.0	M16×2.0	M13.5×1.0, M14×1.25, M14×1.5	9/16-24UNEF, 9/16-18UNF, 5/8-18UNF, 3/4-16UNF, 7/8-14UNF	11.9	9.6	40	12	75	6
9-12	2.0-3.0	M18×2.5, M20×2.5, M22×2.5, M24×3.0, M27×3.0	—	9/16-12UNC, 5/8-11UNC, 3/4-10UNC, 7/8-9UNC	14	10.2	48	14	100	6
8-12	2.0-3.5	M20×2.5, M22×2.5, M24×3.0, M27×3.0, M30×3.5, M33×3.5	—	9/16-12UNC, 5/8-11UNC, 3/4-10UNC, 1-8UNC	16	11.5	50	16	100	6

Metric multi-row thread mills

60° Metric Multi-Row Thread Mills

Show sizes

60° Metric Multi-Row Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Coarse	Fine	Dia. d1 (mm)	Reach L1 (mm)	Shank D (mm)	Flutes	Pre-hole Ø (mm)
0.35	M1.6×0.35	—	1.2	3.4	4	3	1.25
0.4	M2×0.4	—	1.54	5	4	3	1.6
0.45	M2.5×0.45	—	1.96	5.3	4	3	2.05
0.5	M3×0.5	—	2.3	6	4	3	2.5
0.5	—	M6×0.5	4	10	4	3	5.5
0.5	—	M8-M12×0.5	6	16	6	3	7.5
0.6	M3.5×0.6	—	2.7	7	4	3	2.9
0.7	M4×0.7	—	3	8	4	3	3.3
0.75	M4.5×0.75	—	3.4	9	4	3	3.75
0.75	—	M6×0.75	4.8	12	6	3	5.25
0.75	—	M8×0.75	6	16	6	3	7.25
0.75	—	M10-M12×0.75	8	20	8	3	9.25
0.8	M5×0.8	—	4	10	4	3	4.2
1	M6×1	—	4.8	12	6	3	5
1	—	M8×1	6	16	6	3	7
1	—	M10×1	8	20	8	3	9
1	—	M12-M14×1	10	22	10	4	11
1	—	M16×1	12	22	12	4	15
1	—	M20-M48×1	16	30	16	4	19
1.25	M8×1.25	—	6	16	6	3	6.75
1.25	M8×1.25	—	6.5	17.5	8	3	6.75
1.25	—	M10×1.25	8	20	8	3	8.75
1.25	—	M12-M14×1.25	10	25	10	4	10.75
1.5	M10×1.5	—	8	20	8	3	8.5
1.5	M10×1.5	—	8.2	21	10	4	8.5
1.5	—	M12-M20×1.5	10	28	10	4	10.5
1.5	—	M14-M24×1.5	12	28	12	4	12.5
1.5	—	M20-M48×1.5	16	30	16	4	18.5
1.75	M12×1.75	—	9.8	30	10	4	10.25
2	M14×2.0	—	10	30	10	4	12
2	M14×2.0	—	11.6	30	12	4	12
2	M16×2.0	—	12	30	12	4	14
2	M16×2.0	—	13.6	33	14	4	14
2	—	M20-M80×2.0	16	40	16	4	18
2.5	M18-M20×2.5	—	14	36	14	4	15.5
2.5	—	M20-M80×2.5	16	40	16	4	17.5
3	M24×3.0	—	16	42	16	4	21
3.5	M30×3.5	—	16	42	16	4	26.5

UN thread mills

60° UN Single-Form Thread Mills

Show sizes

60° UN Single-Form Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (TPI)	UNC	UNF	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes	Pre-hole Ø (mm)
80	—	No.0-80	1.15	0.737	4.6	4	50	3	1.3
72	—	No.1-72	1.45	0.991	3.9	4	50	3	1.6
56	No.2-56	No.3-56	1.65	1.06	6.5	4	50	3	1.8
40	No.4, No.5-40	No.6-40	2.1	1.275	8.5	4	50	3	2.3
40	No.5-40	No.6-40	2.55	1.6	7.4	4	50	3	2.6
32	No.6, No.8-32	No.10-32	2.55	1.518	7.4	4	50	3	3.5
32	No.8-32	No.10-32	3.2	2.168	11	4	50	3	4.0
32	—	No.10-32	3.8	2.768	12	4	50	3	4
20	1/4-20	7/16-20	4.88	3.229	20	6	50	3	5.2
16	3/8-16	—	7.7	—	20	8	60	3	8

60° UN Triple-Form Thread Mills

Show sizes

60° UN Triple-Form Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (TPI)	UNC	UNF	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	Flutes
80	—	No.0-80	1.15	0.737	3.5	4	3
72	—	No.1-72	1.45	0.991	3.9	4	3
64	No.1-64	No.2-64	1.4	0.884	4.2	4	3
56	No.2-56	No.3-56	1.65	1.06	5	4	3
48	No.3-48	No.4-48	1.9	1.212	6	4	3
40	No.4, No.5-40	No.6-40	2.1	1.275	6	4	3
40	No.5-40	No.6-40	2.45	1.6	7.2	4	3
36	—	No.8-36	3.3	2.383	8.7	4	3
32	No.6, No.8-32	No.10-32	2.55	1.518	7.4	4	3
32	No.8-32	No.10-32	3.2	2.168	10	4	3
32	—	No.10-32	3.8	2.768	10.3	4	3
28	—	1/4-28	5.25	4.071	13.2	6	3
24	No.10-24	5/16-24	3.58	2.204	10.2	4	3
24	—	5/16-24	6.68	5.304	16.5	8	3
20	1/4-20	7/16-20	4.88	3.229	13.4	6	3
20	—	7/16-20	9.55	7.899	23	10	4
18	5/16-18	—	6.15	4.316	16.9	8	3
16	3/8-16	—	6.7	4.636	19.1	8	3
14	7/16-14	—	9	6.641	23.3	10	4

60° UN Multi-Form Thread Mills

Show sizes

60° UN Multi-Form Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (TPI)	UNC	UNF	UNEF	Dia. d1 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes	Pre-hole Ø (mm)
36	—	No.8-36	—	3	8.5	4	50	3	3.5
32	—	No.10-32	No.12-3/8-32	3.5	11.1	4	50	3	4
28	—	No.12-28, 1/4-28	7/16, 1/2-28	4	11.8	4	50	3	4.6
28	—	—	7/16, 1/2-28	5	12.7	6	60	3	5.5
28	—	1/4-28	7/16, 1/2-28	9.2	22.7	10	75	4	10.2
24	No.10-24	5/16, 3/8-24	9/16, 11/16-24	3.2	10.6	4	50	3	3.8
24	No.12-24	5/16, 3/8-24	9/16, 11/16-24	4	11.6	4	50	3	4.5
24	—	5/16, 3/8-24	9/16, 11/16-24	6	15.9	6	60	3	6.8
24	—	3/8-24	9/16, 11/16-24	7.8	19.1	8	60	3	8.5
24	—	—	9/16, 11/16-24	11.9	28.6	12	75	4	13.2
20	1/4-20	7/16, 1/2-20	3/4, 1-20	4	12.7	4	50	3	5.2
20	1/4-20	7/16, 1/2-20	3/4, 1-20	4.88	13	6	60	3	5.2
20	—	7/16, 1/2-20	3/4, 1-20	9	22.9	10	75	4	9.8
20	—	1/2-20	3/4, 1-20	10	25.4	10	75	4	11.5
20	—	—	3/4, 1-20	12	38.1	12	75	4	17.8
18	5/16-18	9/16, 5/8-18	11/16, 1 11/16-18	5.8	16.9	6	60	3	6.5
18	—	9/16, 5/8-18	11/16, 1 11/16-18	10	29.6	10	75	4	12.8
18	Confirm on inquiry	—	—	—	—	—	—	—	—
16	—	3/4-16	—	7.6	19.1	8	60	3	8
16	Confirm on inquiry	—	—	—	—	—	—	—	—
14	—	7/8-14	—	8	20	8	60	3	9.3
14	—	7/8-14	—	16	39.9	16	100	4	20.5
13	1/2-13	—	—	8	20	8	60	3	10.8
12	9/16-12	1, 1 1/2-12	—	10	28	10	75	4	12.3
12	—	1, 1 1/2-12	—	16	40	16	100	4	23.5
11	5/8-11	—	—	12	30	12	75	4	13.5
10	3/4-10	—	—	12	30	12	75	4	16.5
9	7/8-9	—	—	16	38	16	100	4	19.5
8	1-8	—	—	16	40	16	100	4	22

Pipe thread mills: NPT / NPTF, BSP, BSPT

NPT / NPTF Taper Pipe Thread Mills

Show sizes

NPT / NPTF Taper Pipe Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (TPI)	Thread	Dia. d1 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes	Pre-hole Ø (mm)
27	1/16", 1/8"	5.2	12	6	60	3	6.3
27	1/8"	7.2	12	8	60	3	8.5
18	1/4"	7.1	14.1	8	60	3	11.1
18	1/4", 3/8"	8.7	20	10	75	4	11.1
18	3/8"	10.6	22	12	75	4	14.5
18	3/8"	12.6	22	14	90	4	14.5
14	1/2"	10.8	18.1	12	75	4	17.7
14	1/2", 3/4", 5/8"	14.4	25	16	90	4	23
11.5	1"–2"	14.1	30	16	90	4	29-56
8	2-1/2", 3"	13.8	35	16	90	4	66.5

55° BSP Single-Form Thread Mills

Show sizes

55° BSP Single-Form Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
P0.793	W5/32	3.1	1.9	8	4	50	4
P1.058	W3/16-24	3.5	2	10	4	50	4
P1.27	W1/4-20	4	2.2	12	4	50	4
P0.907-P1.411	W5/16-18, G1/16-28, G1/8-28	6	4.5	14	6	50	4
P1.336-P1.814	W3/8-16, W7/16-14, G1/4-19, G3/8-19	8	5.9	22	8	60	4
P1.336-P1.814	W7/16-14, G1/2-14, G1/4-19, G3/4-14, G3/8-19	10	7.3	30	10	75	4
P1.336-P2.54	W5/8-11, W3/4-10, G1/2-14, G3/4-14, G1-11	12	8.2	38	12	75	4

55° BSP Parallel Pipe Thread Mills

Show sizes

55° BSP Parallel Pipe Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (TPI)	Thread	Dia. d1 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes	Pre-hole Ø (mm)
28	G1/16, G1/8	6	12	6	60	3	6.7
28	G1/8	8	12	8	60	3	8.7
19	G1/4	8	18	8	60	3	11.8
19	G1/4, G3/8	10	15	10	75	4	15.2
19	G1/4, G3/8	9.9	26.7	10	75	4	15.2
19	G1/4, G3/8	12	22	12	75	4	15.2
19	G3/8	14	22	14	90	4	19
14	G1/2, G5/8, G3/4	11.9	35	12	83	4	19
14	G1/2, G5/8, G3/4	16	30	16	90	4	23
11	G1"–G4"	16	34	16	90	4	30.7

55° BSPT Taper Pipe Thread Mills

Show sizes

55° BSPT Taper Pipe Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (TPI)	Thread	Dia. d1 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes	Pre-hole Ø (mm)
28	RC1/16, RC1/8	5.24	12	6	60	3	6.7
28	RC1/8	7.24	12	8	60	3	8.7
19	RC1/4	7.13	14	8	60	3	11.8
19	RC1/4, RC3/8	8.88	18	10	75	4	15.2
19	RC3/8	10.75	20	12	75	4	15.2
19	RC3/8	12.75	20	14	90	4	19
14	RC1/2, RC3/4, RC7/8	14.48	24	16	90	4	23
11	RC1, RC1-1/2, RC2, RC2-1/2	14.13	30	16	90	4	30.7

Taper Pipe Thread Pre-Milling End Mills

Show sizes

Taper Pipe Thread Pre-Milling End Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Thread	Dia. d1 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
NPT 1/16"–1/8", NPTF 1/16"–1/8", BSPT 1/16"–1/8"	5.2	12	6	50	4
NPT 1/4"–1", NPTF 1/4"–1", BSPT 1/4"–1"	8.5	24	10	75	4
NPT 1/4"–3", NPTF 1/4"–3", BSPT 1/4"–3"	10	32	12	75	4

Thread mills for hard and difficult materials

T metric triple-form thread mills, 2xD, for stainless steel, titanium and superalloys: sizes and dimensions confirm on inquiry.

GX Metric Triple-Form, 2xD

Show sizes

GX Metric Triple-Form, 2xD — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Coarse	Fine	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes	Pre-hole Ø (mm)
0.25	M1×0.25	—	0.7	0.375	2.8	4	50	3	0.75
0.25	M1.2×0.25	—	0.9	0.575	3	4	50	3	0.95
0.3	M1.4×0.3	—	1.05	0.66	3.2	4	50	3	1.1
0.35	M1.6×0.35	—	1.2	0.745	3.4	4	50	3	1.25
0.4	M2×0.4	—	1.55	1.03	4.2	4	50	3	1.6
0.45	M2.2×0.45	—	1.7	1.11	5	4	50	3	1.75
0.45	M2.5×0.45	M2.6×0.45	1.95	1.365	5.2	4	50	3	2.05
0.5	M3×0.5	M3.5-M16×0.5	2.4	1.75	6.2	4	50	3	2.5
0.6	M3.5×0.6	—	2.75	1.97	7.3	4	50	3	2.9
0.7	M4×0.7	—	3.15	2.24	8.3	4	50	3	3.3
0.8	M5×0.8	—	3.9	2.86	10.4	4	50	3	4.2
1	M6×1	M8-M40×1	4.8	3.5	12.5	6	60	3	5
1.25	M8×1.25	—	6.5	4.875	16.6	8	60	3	6.8
1.5	M10×1.5	M12-M48×1.5	8.2	6.25	20.8	10	75	4	8.5
1.75	M12×1.75	—	9.9	7.625	25	10	75	4	10.3
2	M14×2,, M16×2	—	11.6	9	33	12	75	4	12.0-14.0
2.5	M20×2.5	—	13.9	10.65	41.3	14	90	5	17.5
3	M24×3	—	15.9	12	50	16	100	5	21

RX Double-Row, Hardened Steel

Show sizes

RX Double-Row, Hardened Steel — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Coarse	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes	Pre-hole Ø (mm)
0.35	M1.6×0.35	1.2	0.78	3.2	6	50	3	1.25
0.4	M2×0.4	1.55	1.05	4	6	50	4	1.6
0.45	M2.5×0.45	2	1.45	5	6	50	4	2.05
0.5	M3×0.5	2.4	1.8	6	6	50	4	2.5
0.7	M4×0.7	3.15	2.3	8	6	50	4	3.3
0.8	M5×0.8	4.05	3.05	10	6	50	4	4.2
1	M6×1	4.8	3.6	12	6	50	5	5
1.25	M8×1.25	6.5	5	16	8	60	6	6.75
1.5	M10×1.5	8.2	6.4	20	10	75	6	8.5
1.75	M12×1.75	9.6	7.5	24	10	75	6	10.25

Multi-function and 3-in-1 thread mills

Multi-Function, Aluminium

Show sizes

Multi-Function, Aluminium — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.35	M1.6	1.15	0.69	5	4	50	2
0.4	M2	1.5	0.98	6.5	4	50	2
0.45	M2.5	1.9	1.31	7	4	50	2
0.5	M3	2.4	1.75	9	6	50	3
0.7	M4	3.2	2.29	11	6	50	3
0.8	M5	3.9	2.86	12	6	50	3
1	M6	4.7	3.4	14	6	50	3
1.25	M8	6.5	4.87	18	8	60	4
1.5	M10	7.8	5.55	23	8	60	4
1.75	M12	9.6	7.32	26	10	75	4

Multi-Function, Steel

Show sizes

Multi-Function, Steel — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
0.5	M3	2.4	1.75	7	6	50	4
0.7	M4	3.2	2.29	9	6	50	4
0.8	M5	3.9	2.86	12	6	50	4
1	M6	4.7	3.4	14	6	50	4
1.25	M8	6.5	4.87	18	8	60	4
1.5	M10	7.8	5.55	23	8	60	4
1.75	M12	9.6	7.32	26	10	75	4

3-in-1 Drill and Thread Mills

Show sizes

3-in-1 Drill and Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Thread	Cutter dia. d2 (mm)	Drill dia. d1 (mm)	Thread length L1 (mm)	Drill point length (mm)	Neck dia. D1 (mm)	OAL L (mm)	Flutes
M6×1	4.8	5	12	1	7	60	2
M8×1.25	6.5	6.8	15	1.3	9	75	2
M10×1.5	8.2	8.5	20	1.5	11	75	2
M12×1.75	9.9	10.3	24	1.8	13.5	75	2

Trapezoidal, ACME and PG thread mills

TR 30° Trapezoidal Thread Mills

Show sizes

TR 30° Trapezoidal Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (mm)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
1	TR7×1	5.5	4.1	20	6	50	4
1.5	TR8×1.5, TR9×1.5	6	4	20	6	50	4
2	TR9×2, TR10×2, TR11×2	6.4	3.7	20	8	60	4
2	TR12×2, TR14×2, TR16×2, TR18×2, TR20×2	9.4	6.5	35	10	75	4
3	TR11×3, TR14×3	7.4	3.8	25	8	60	4
3	TR14×3, TR22×3, TR24×3, TR26×3, TR28×3, TR30×3	10	6	35	10	75	4
4	on request	11	6	38	12	75	4
5	TR22×5, TR24×5, TR26×5, TR28×5	14	7.8	50	14	100	4
6	TR30×6, TR32×6, TR34×6, TR36×6, TR38×6, TR40×6, TR42×6	16	9	50	16	100	4

ACME 29° Thread Mills

Show sizes

ACME 29° Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (TPI)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
16	ACME 1/4-16	4.7	2.6	15	6	50	4
14	ACME 5/16-14	6	3.6	20	6	50	4
12	ACME 3/8-12, ACME 7/16-12	7.2	4.5	25	8	60	4
10	ACME 1/2-10	10	6.5	35	10	75	4
8	ACME 5/8-8	12	7.5	35	12	75	4
6	ACME 3/4-6, ACME 7/8-6	12	6.5	35	12	75	4

PG 80° Thread Mills

Show sizes

PG 80° Thread Mills — dimensions in mm · Chapter 05 · Solid carbide thread mills (PDF)
Pitch (TPI)	Thread	Dia. d1 (mm)	Neck d2 (mm)	Reach L1 (mm)	Shank D (mm)	OAL L (mm)	Flutes
20	PG7, PG9, PG11, PG13.5, PG16	7.9	6.25	20	8	60	4
18	PG9, PG11, PG13.5, PG16	9.9	8.06	25	10	75	5
16	PG21, PG29, PG36, PG42, PG48	12	9.94	28	12	75	5

Ordering and delivery

Minimum order: 5 pieces per size
Lead time: Stock items ship in 3 days; custom tools 15–30 working days.
Payment: T/T. Production starts once the deposit is received.
Shipping: By express, air or sea; terms agreed with you.

Free samples — tell us the tool and size, and we will confirm the details with you before shipping.

Request a free sample

Packaging

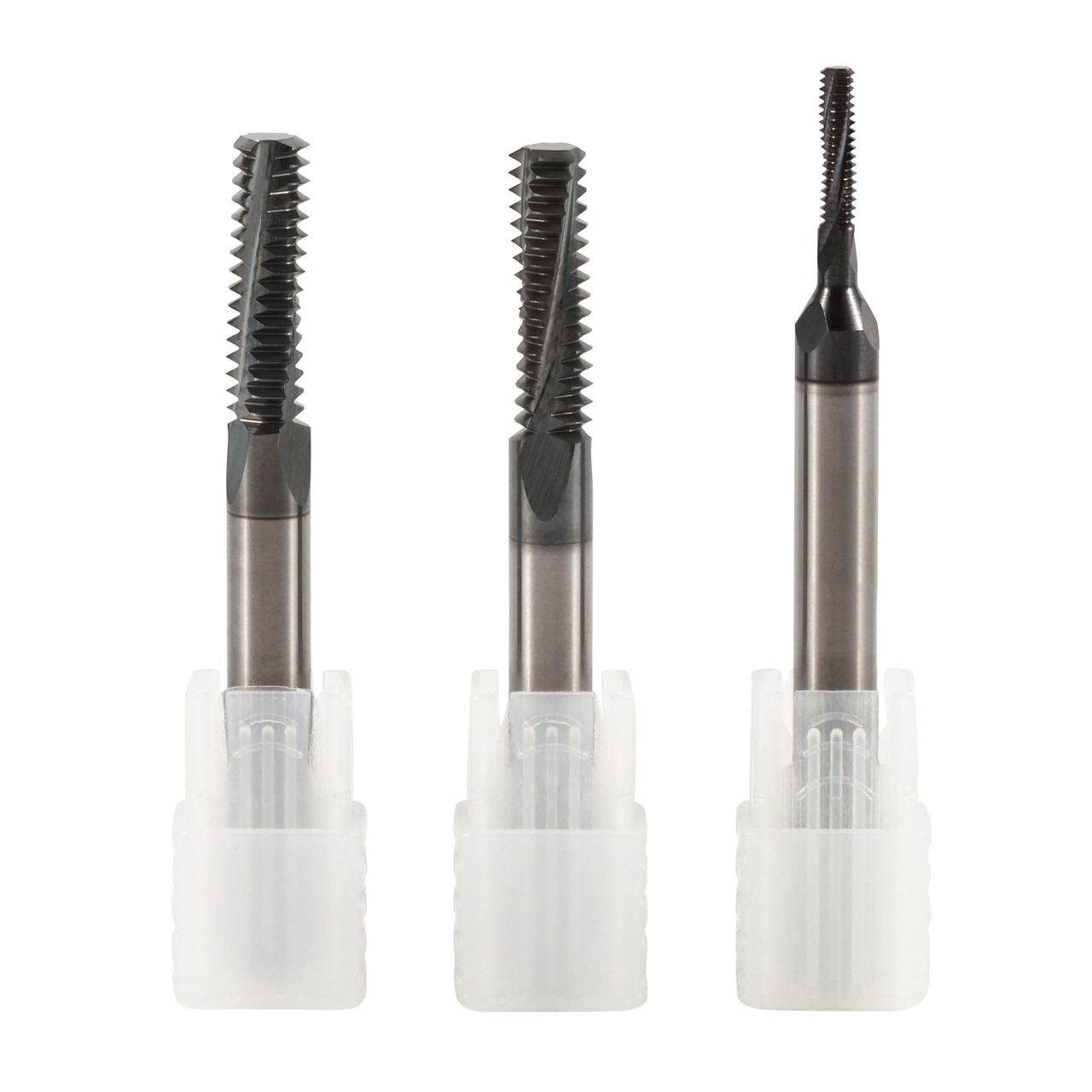

Every tool is packed on its own: a tip cap protects the cutting edge, and each shank tool sits in its own reusable tube, sized to the shank and length and labelled for your order.
Micro tools (drills and end mills below about Φ3) go in micro tubes that hold the tool without touching the edge.
Inserts and crown drill tips are packed in slotted insert boxes, 10 per box for standard inserts.
Tubes are grouped in 5- or 10-piece boxes, then packed in export cartons sized to the order; reinforced or palletised packing for sea freight on request.

Questions about ordering

What is the minimum order?

5 pieces per size, for standard and made-to-drawing tools.

How long is the lead time?

Stock items ship in 3 days. Custom tools take 15–30 working days after the order and the drawing are confirmed, depending on the tool. Some standard sizes are in stock; we confirm stock when we quote.

How do I pay?

T/T. Production starts once the deposit is received.

How do you ship?

By express, air or sea; terms agreed with you.

Can you make a tool to my drawing?

Yes. Send a drawing, a photo of a sample or the tool you use now. We confirm the geometry and the drawing with you before production; 3D design support and OEM / ODM orders are available.

Are the tools inspected before shipment?

Yes. Tools are inspected before shipment.

What should I send for a quote?

The order code or a drawing, the workpiece material and the quantity. Custom quote checklist →

Thread milling cutters

Series overview

Cutting a thread that is not listed?

Metric single-form thread mills

60° Metric Single-Form Thread Mills

60° M Single-Form, 3D

60° M Single-Form, 4D

60° M Long Single-Form, 75L

60° M Long Single-Form, 100L

60° Metric Single-Form, Large Shank

Metric 3-tooth thread mills

60° Metric 3-Tooth Thread Mills

60° M 3-Tooth, 3D

60° M 3-Tooth, 4D

60° M Long 3-Tooth, 75L

60° M Long 3-Tooth, 100L

60° Metric 3-Tooth, Large Shank

Partial-profile thread mills, metric and UN

60° M/UN Partial-Profile, 3D

60° Partial-Profile, UN / M

Metric multi-row thread mills

60° Metric Multi-Row Thread Mills

UN thread mills

60° UN Single-Form Thread Mills

60° UN Triple-Form Thread Mills

60° UN Multi-Form Thread Mills

Pipe thread mills: NPT / NPTF, BSP, BSPT

NPT / NPTF Taper Pipe Thread Mills

55° BSP Single-Form Thread Mills

55° BSP Parallel Pipe Thread Mills

55° BSPT Taper Pipe Thread Mills

Taper Pipe Thread Pre-Milling End Mills

Thread mills for hard and difficult materials

GX Metric Triple-Form, 2xD

RX Double-Row, Hardened Steel

Multi-function and 3-in-1 thread mills

Multi-Function, Aluminium

Multi-Function, Steel

3-in-1 Drill and Thread Mills

Trapezoidal, ACME and PG thread mills

TR 30° Trapezoidal Thread Mills

ACME 29° Thread Mills

PG 80° Thread Mills

Ordering and delivery

Packaging

Questions about ordering

Catalog pages for this range
