Replaceable-tip crown drills
Replaceable-tip drill systems. The carbide insert is changed without removing the body from the holder, so the shank and the coolant path stay in place through tip changes. Bodies and inserts are matched as a set.
Series overview
| Series | Tip diameter | Drill bodies | Depths |
|---|---|---|---|
| TPD (side-locking) | Φ8.0–32.9 | 119 | 3D, 5D, 8D |
| SMD (two-screw) | Φ12.0–42.0 | 92 | 1.5D, 3D, 5D, 8D, 12D |

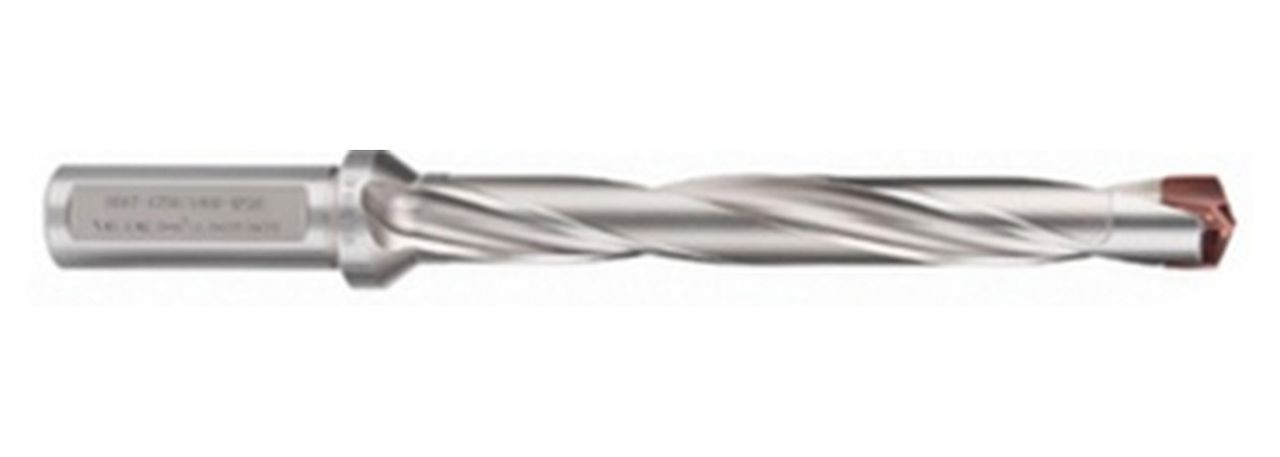

| HLD (rear-locking, order codes KS-…) | Φ12.50–52.00 | 198 | 3D, 5D, 7D, 10D, 12D |
Full size tables are in catalog chapter 02, Replaceable-tip drills (PDF). HLD crown drills are listed under order codes KS-… in catalog chapter 02 (PDF). No prices.
Inserts are supplied in diameter bands; bodies are ordered separately. Effective-length availability varies by series and size. Full body tables are below and in catalog chapter 02.

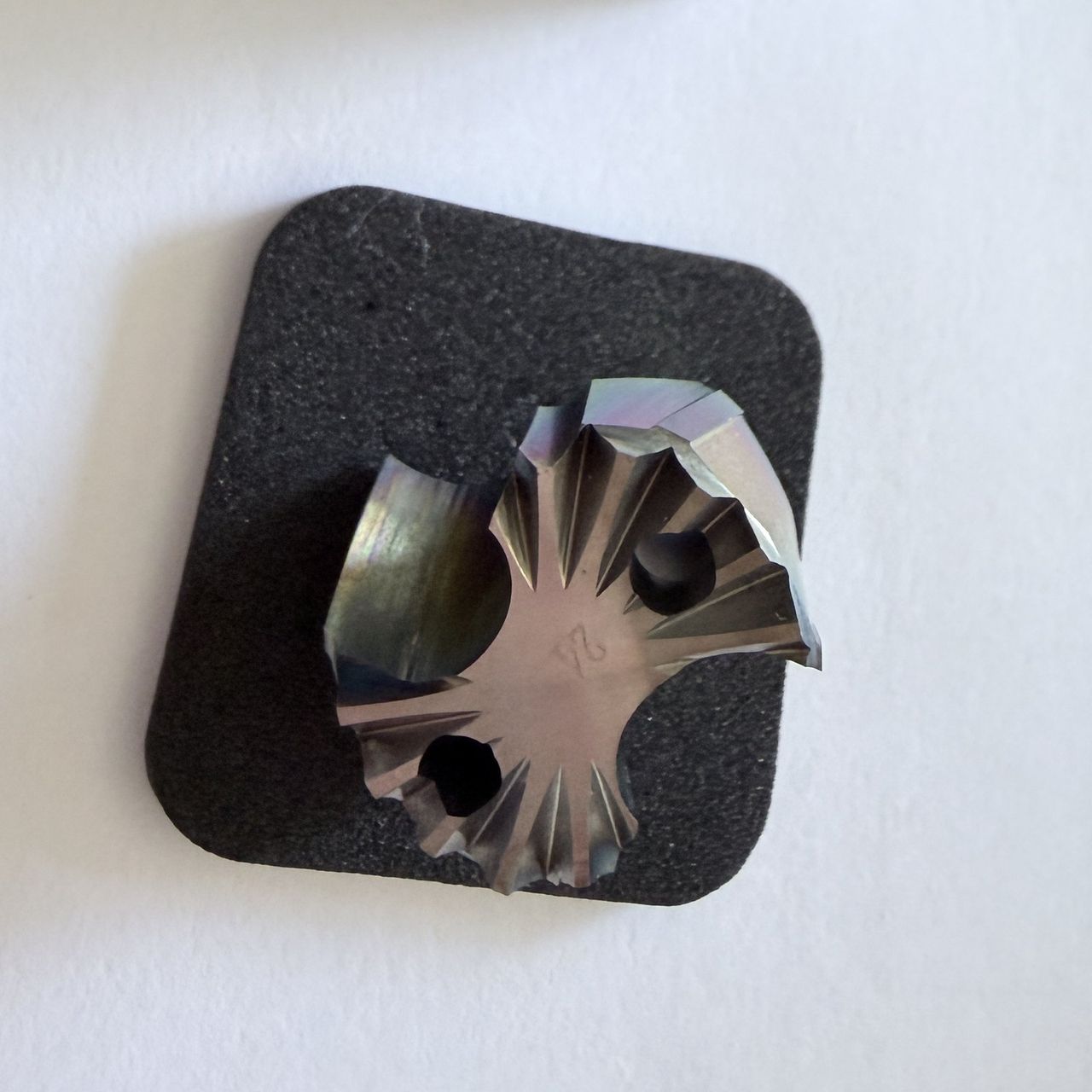

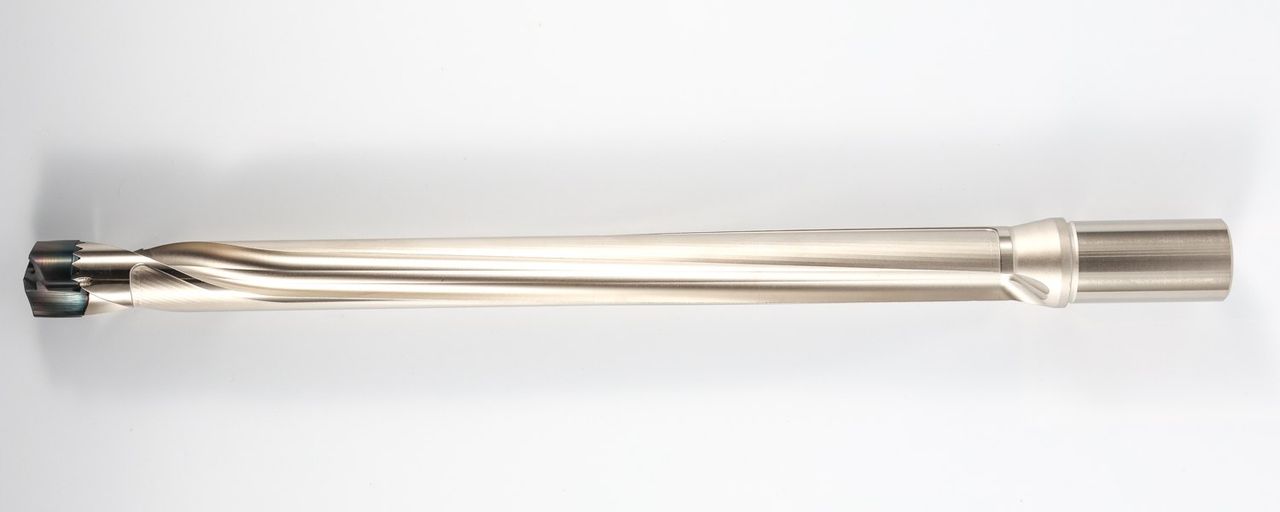

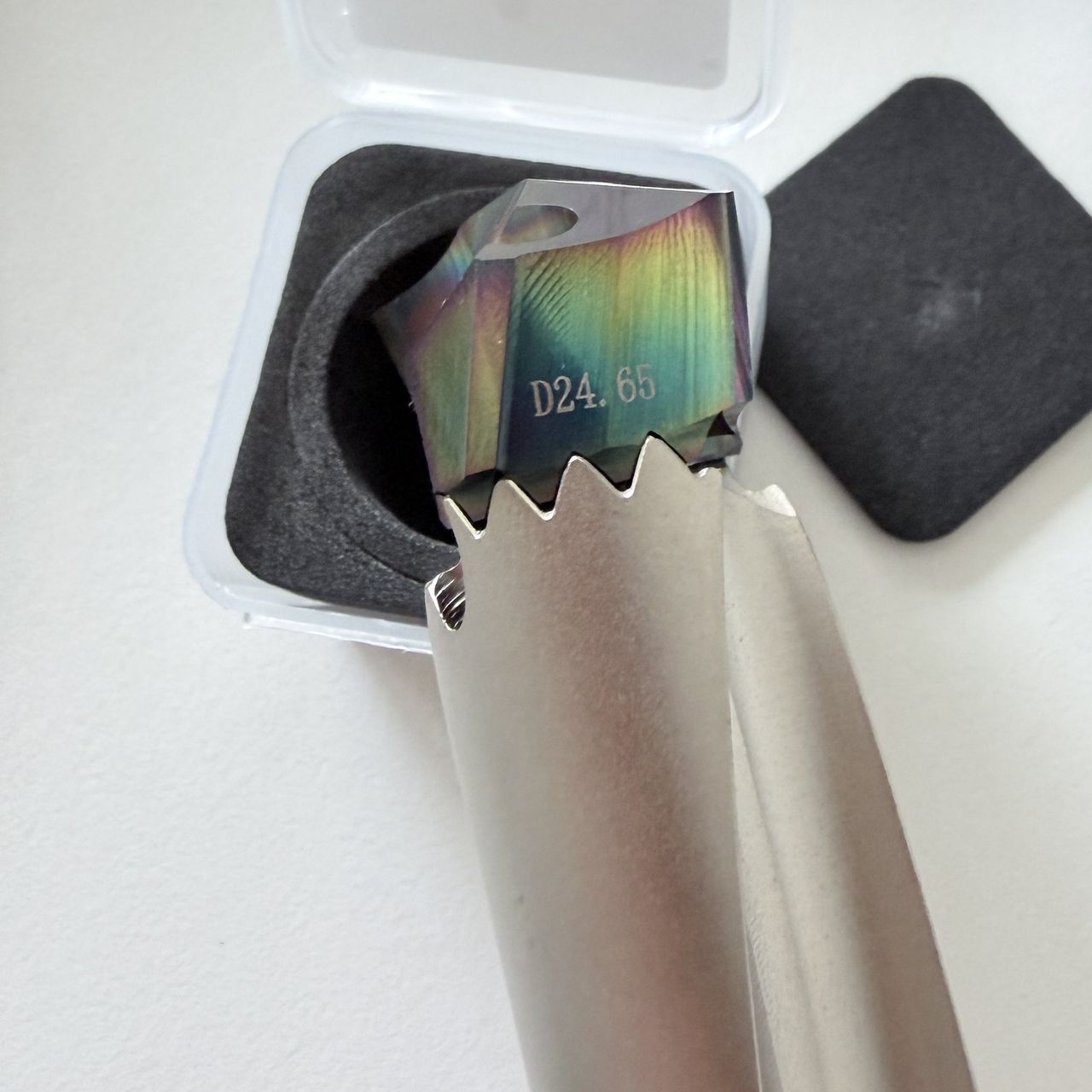

SMD crown drills for aluminium, made to order
SMD drill bodies and tips can be made to order for aluminium, with the tip and body specified for the hole. Send the hole diameter and depth, the alloy and your machine, and we will confirm the tip and body to suit.
Matching a body to an existing holder?
Tell us the holder interface, the hole diameter and the depth, and we will confirm the body and insert combination.
TPD side-locking crown drills
TPD tips
Side-locking carbide tips in 0.1 mm steps.
Show sizes
| Tip code | Dia. D (mm) | Length L (mm) | Thick. t (mm) |
|---|---|---|---|
| TPD080B–109B | 8.0–10.9 | 5.5 | 3.5 |
| TPD110B–119B | 11.0–11.9 | 5.8 | 3.5 |
| TPD120B–129B | 12.0–12.9 | 6.3 | 3.5 |
| TPD130B–139B | 13.0–13.9 | 6.5 | 4.0 |
| TPD140B–149B | 14.0–14.9 | 6.8 | 4.0 |
| TPD150B–159B | 15.0–15.9 | 7.0 | 4.0 |
| TPD160B–169B | 16.0–16.9 | 7.7 | 5.5 |
| TPD170B–179B | 17.0–17.9 | 7.9 | 5.5 |
| TPD180B–189B | 18.0–18.9 | 8.1 | 6.0 |
| TPD190B–199B | 19.0–19.9 | 8.3 | 6.0 |
| TPD200B–209B | 20.0–20.9 | Confirm on inquiry | 6.5 |
| TPD210B–219B | 21.0–21.9 | 9.4 | 6.5 |
| TPD220B–229B | 22.0–22.9 | 9.6 | 7.0 |
| TPD230B–239B | 23.0–23.9 | 9.8 | 7.0 |
| TPD240B–249B | 24.0–24.9 | 10.7 | 7.5 |
| TPD250B–259B | 25.0–25.9 | 10.9 | 7.5 |
| TPD260B–269B | 26.0–26.9 | 11.0 | 8.5 |
| TPD270B–279B | 27.0–27.9 | 11.8 | 8.5 |
| TPD280B–289B | 28.0–28.9 | 12.6 | 9.5 |
| TPD290B–299B | 29.0–29.9 | 12.9 | 9.5 |
| TPD300B–309B | 30.0–30.9 | 13.0 | 10 |
| TPD310B–319B | 31.0–31.9 | 13.3 | 10 |
| TPD320B–329B | 32.0–32.9 | 13.5 | 10 |
TPD screws and wrenches
Show sizes
| Dia. range D (mm) | Screw | Wrench | Torque (N·m) |
|---|---|---|---|
| Confirm on inquiry | FTNB0209 | TW06P | 0.4 |
| 13.0–14.9 | FTNB02512 | TW07S | 0.8 |
| 15.0–17.9 | FTNB02514 | TW07S | 0.8 |
| 18.0–19.9 | FTNB0316 | TW09S | 1.2 |
| 20.0–23.9 | FTNB0319 | TW09S | 1.2 |
| 24.0–25.9 | FTNB03522 | TW15S | 3 |
| 26.0–27.9 | FTNB03524 | TW15S | 3 |
| 28.0–29.9 | FTNB0426 | TW15S | 3 |
| 30.0–32.9 | FTNB0528 | TW20-100 | 4 |
TPD drill bodies, 3xD
Side-locking replaceable-tip drill bodies.
Show sizes
| Order code | Tip dia. D (mm) | Shank d1 (mm) | Collar d2 (mm) | Flute L1 (mm) | Shank L2 (mm) | OAL L (mm) |
|---|---|---|---|---|---|---|
| TPD090-16A-3D | 9.0–9.9 | 16 | 20 | Confirm on inquiry | 48 | Confirm on inquiry |
| TPD100-16A-3D | 10.0–10.4 | 16 | 20 | 30.0 | 48 | 95 |
| TPD105-16A-3D | 10.5–10.9 | 16 | 20 | 31.5 | 48 | 96 |
| TPD110-16A-3D | 11.0–11.4 | 16 | 20 | 33.0 | 48 | 98 |
| TPD115-16A-3D | 11.5–11.9 | 16 | 20 | 34.5 | 48 | 99 |
| TPD120-16A-3D | 12.0–12.4 | 16 | 20 | 36.0 | 48 | 102 |
| TPD125-16A-3D | 12.5–12.9 | 16 | 20 | 37.5 | 48 | 104 |
| TPD130-16A-3D | 13.0–13.4 | 16 | 20 | 39.0 | 48 | 107 |
| TPD135-16A-3D | 13.5–13.9 | 16 | 20 | 40.5 | 48 | 109 |
| TPD140-16A-3D | 14.0–14.4 | 16 | 20 | 42.0 | 48 | 111 |
| TPD145-16A-3D | 14.5–14.9 | 16 | 20 | 43.5 | 48 | 114 |
| TPD150-20A-3D | 15.0–15.4 | 20 | 25 | 45.0 | 50 | 118 |
| TPD155-20A-3D | 15.5–15.9 | 20 | 25 | 46.5 | 50 | 120 |
| TPD160-20A-3D | 16.0–16.4 | 20 | 25 | 48.0 | 50 | 122 |
| TPD165-20A-3D | 16.5–16.9 | 20 | 25 | 49.5 | 50 | 124 |
| TPD170-20A-3D | 17.0–17.4 | 20 | 25 | 51.0 | 50 | 127 |
| TPD175-20A-3D | 17.5–17.9 | 20 | 25 | 52.5 | 50 | 129 |
| TPD180-25A-3D | 18.0–18.4 | 25 | 33 | 54.0 | 56 | 137 |
| TPD185-25A-3D | 18.5–18.9 | 25 | 33 | 55.5 | 56 | 139 |
| TPD190-25A-3D | 19.0–19.4 | 25 | 33 | 57.0 | 56 | 142 |
| TPD195-25A-3D | 19.5–19.9 | 25 | 33 | 58.5 | 56 | 144 |
| TPD200-25A-3D | 20.0–20.4 | 25 | 33 | 60.0 | 56 | 146 |
| TPD205-25A-3D | 20.5–20.9 | 25 | 33 | 61.5 | 56 | 148 |
| TPD210-25A-3D | 21.0–21.4 | 25 | 33 | 63.0 | 60 | 151 |
| TPD215-25A-3D | 21.5–21.9 | 25 | 33 | 64.5 | 60 | 153 |
| TPD220-25A-3D | 22.0–22.4 | 25 | 33 | 66.0 | 60 | 155 |
| TPD225-25A-3D | 22.5–22.9 | 25 | 33 | 67.5 | 60 | 157 |
| TPD230-25A-3D | 23.0–23.4 | 25 | 33 | 69.0 | 60 | 160 |
| TPD235-25A-3D | 23.5–23.9 | 25 | 33 | 70.5 | 60 | 162 |
| TPD240-32A-3D | 24.0–24.4 | 32 | 43 | 72.0 | 60 | 168 |
| TPD245-32A-3D | 24.5–24.9 | 32 | 43 | 73.5 | 60 | 170 |
| TPD250-32A-3D | 25.0–25.4 | 32 | 43 | 75.0 | 60 | 173 |
| TPD255-32A-3D | 25.5–25.9 | 32 | 43 | 76.5 | 60 | 175 |
| TPD260-32A-3D | 26.0–26.9 | 32 | 43 | 78.0 | 60 | 177 |
| TPD270-32A-3D | 27.0–27.9 | 32 | 43 | 81.0 | 60 | 182 |
| TPD280-32A-3D | 28.0–28.9 | 32 | 43 | 84.0 | 60 | 186 |
| TPD290-32A-3D | 29.0–29.9 | 32 | 43 | 87.0 | 60 | 191 |
| TPD300-32A-3D | 30.0–30.9 | 32 | 43 | 90.0 | 60 | 194 |
| TPD310-32A-3D | 31.0–31.9 | 32 | 43 | 93.0 | 60 | 199 |
| TPD320-32A-3D | 32.0–32.9 | 32 | 43 | 96.0 | 60 | 201 |
TPD drill bodies, 5xD
Side-locking replaceable-tip drill bodies.
Show sizes
| Order code | Tip dia. D (mm) | Shank d1 (mm) | Collar d2 (mm) | Flute L1 (mm) | Shank L2 (mm) | OAL L (mm) |
|---|---|---|---|---|---|---|
| TPD090-16A-5D | 9.0–9.9 | 16 | 20 | 45.0 | 48 | 110 |
| TPD100-16A-5D | 10.0–10.4 | 16 | 20 | 50.0 | 48 | 115 |
| TPD105-16A-5D | 10.5–10.9 | 16 | 20 | 52.5 | 48 | 117 |
| TPD110-16A-5D | 11.0–11.4 | 16 | 20 | 55.0 | 48 | 120 |
| TPD115-16A-5D | 11.5–11.9 | 16 | 20 | 57.5 | 48 | 123 |
| TPD120-16A-5D | 12.0–12.4 | 16 | 20 | 60.0 | 48 | 126 |
| TPD125-16A-5D | 12.5–12.9 | 16 | 20 | 62.5 | 48 | 129 |
| TPD130-16A-5D | 13.0–13.4 | 16 | 20 | 65.0 | 48 | 133 |
| TPD135-16A-5D | 13.5–13.9 | 16 | 20 | 67.5 | 48 | 136 |
| TPD140-16A-5D | 14.0–14.4 | 16 | 20 | 70.0 | 48 | 139 |
| TPD145-16A-5D | 14.5–14.9 | 16 | 20 | 72.5 | 48 | 143 |
| TPD150-20A-5D | 15.0–15.4 | 20 | 25 | 75.0 | 50 | 148 |
| TPD155-20A-5D | 15.5–15.9 | 20 | 25 | 77.5 | 50 | 151 |
| TPD160-20A-5D | 16.0–16.4 | 20 | 25 | 80.0 | 50 | 154 |
| TPD165-20A-5D | 16.5–16.9 | 20 | 25 | 82.5 | 50 | 157 |
| TPD170-20A-5D | 17.0–17.4 | 20 | 25 | 85.0 | 50 | 161 |
| TPD175-20A-5D | 17.5–17.9 | 20 | 25 | 87.5 | 50 | 164 |
| TPD180-25A-5D | 18.0–18.4 | 25 | 33 | 90.0 | 56 | 173 |
| TPD185-25A-5D | 18.5–18.9 | 25 | 33 | 92.5 | 56 | 176 |
| TPD190-25A-5D | 19.0–19.4 | 25 | 33 | 95.0 | 56 | 180 |
| TPD195-25A-5D | 19.5–19.9 | 25 | 33 | 97.5 | 56 | 183 |
| TPD200-25A-5D | 20.0–20.4 | 25 | 33 | 100.0 | 56 | 186 |
| TPD205-25A-5D | 20.5–20.9 | 25 | 33 | 102.5 | 56 | 189 |
| TPD210-25A-5D | 21.0–21.4 | 25 | 33 | 105.0 | 60 | 193 |
| TPD215-25A-5D | 21.5–21.9 | 25 | 33 | 107.5 | 60 | 196 |
| TPD220-25A-5D | 22.0–22.4 | 25 | 33 | 110.0 | 60 | 199 |
| TPD225-25A-5D | 22.5–22.9 | 25 | 33 | 112.5 | 60 | 202 |
| TPD230-25A-5D | 23.0–23.4 | 25 | 33 | 115.0 | 60 | 206 |
| TPD235-25A-5D | 23.5–23.9 | 25 | 33 | 117.5 | 60 | 209 |
| TPD240-32A-5D | 24.0–24.4 | 32 | 43 | 120.0 | 60 | 216 |
| TPD245-32A-5D | 24.5–24.9 | 32 | 43 | 122.5 | 60 | 219 |
| TPD250-32A-5D | 25.0–25.4 | 32 | 43 | 125.0 | 60 | 223 |
| TPD255-32A-5D | 25.5–25.9 | 32 | 43 | 127.5 | 60 | 226 |
| TPD260-32A-5D | 26.0–26.9 | 32 | 43 | 130.0 | 60 | 229 |
| TPD270-32A-5D | 27.0–27.9 | 32 | 43 | 135.0 | 60 | 236 |
| TPD280-32A-5D | 28.0–28.9 | 32 | 43 | 140.0 | 60 | 242 |
| TPD290-32A-5D | 29.0–29.9 | 32 | 43 | 145.0 | 60 | 249 |
| TPD300-32A-5D | 30.0–30.9 | 32 | 43 | 150.0 | 60 | 254 |
| TPD310-32A-5D | 31.0–31.9 | 32 | 43 | 155.0 | 60 | 261 |
| TPD320-32A-5D | 32.0–32.9 | 32 | 43 | 160.0 | 60 | 265 |
TPD drill bodies, 8xD
Side-locking replaceable-tip drill bodies.
Show sizes
| Order code | Tip dia. D (mm) | Shank d1 (mm) | Collar d2 (mm) | Flute L1 (mm) | Shank L2 (mm) | OAL L (mm) |
|---|---|---|---|---|---|---|
| TPD100-16A-8D | 10.0–10.4 | 16 | 20 | 80 | 48 | 145.0 |
| TPD105-16A-8D | 10.5–10.9 | 16 | 20 | 84 | 48 | 149.0 |
| TPD110-16A-8D | 11.0–11.4 | 16 | 20 | 88 | 48 | 153.0 |
| TPD115-16A-8D | 11.5–11.9 | 16 | 20 | 92 | 48 | 157.0 |
| TPD120-16A-8D | 12.0–12.4 | 16 | 20 | 96 | 48 | 162.0 |
| TPD125-16A-8D | 12.5–12.9 | 16 | 20 | 100 | 48 | 166.5 |
| TPD130-16A-8D | 13.0–13.4 | 16 | 20 | 104 | 48 | 172.0 |
| TPD135-16A-8D | 13.5–13.9 | 16 | 20 | 108 | 48 | 176.5 |
| TPD140-16A-8D | 14.0–14.4 | 16 | 20 | 112 | 48 | 181.0 |
| TPD145-16A-8D | 14.5–14.9 | 16 | 20 | 116 | 48 | 186.5 |
| TPD150-20A-8D | 15.0–15.4 | 20 | 25 | 120 | 50 | 193.0 |
| TPD155-20A-8D | 15.5–15.9 | 20 | 25 | 124 | 50 | 197.5 |
| TPD160-20A-8D | 16.0–16.4 | 20 | 25 | 128 | 50 | 202.0 |
| TPD165-20A-8D | 16.5–16.9 | 20 | 25 | 132 | 50 | 206.5 |
| TPD170-20A-8D | 17.0–17.4 | 20 | 25 | 136 | 50 | 212.0 |
| TPD175-20A-8D | 17.5–17.9 | 20 | 25 | 140 | 50 | 216.5 |
| TPD180-25A-8D | 18.0–18.4 | 25 | 33 | 144 | 56 | 227.0 |
| TPD185-25A-8D | 18.5–18.9 | 25 | 33 | 148 | 56 | 231.5 |
| TPD190-25A-8D | 19.0–19.4 | 25 | 33 | 152 | 56 | 237.0 |
| TPD195-25A-8D | 19.5–19.9 | 25 | 33 | 156 | 56 | 241.5 |
| TPD200-25A-8D | 20.0–20.4 | 25 | 33 | 160 | 56 | 246.0 |
| TPD205-25A-8D | 20.5–20.9 | 25 | 33 | 164 | 56 | 250.5 |
| TPD210-25A-8D | 21.0–21.4 | 25 | 33 | 168 | 60 | 256.0 |
| TPD215-25A-8D | 21.5–21.9 | 25 | 33 | 172 | 60 | 260.5 |
| TPD220-25A-8D | 22.0–22.4 | 25 | 33 | 176 | 60 | 265.0 |
| TPD225-25A-8D | 22.5–22.9 | 25 | 33 | 180 | 60 | 269.5 |
| TPD230-25A-8D | 23.0–23.4 | 25 | 33 | 184 | 60 | 275.0 |
| TPD235-25A-8D | 23.5–23.9 | 25 | 33 | 188 | 60 | 279.5 |
| TPD240-32A-8D | 24.0–24.4 | 32 | 43 | 192 | 60 | 288.0 |
| TPD245-32A-8D | 24.5–24.9 | 32 | 43 | 196 | 60 | 292.5 |
| TPD250-32A-8D | 25.0–25.4 | 32 | 43 | 200 | 60 | 298.0 |
| TPD255-32A-8D | 25.5–25.9 | 32 | 43 | 204 | 60 | 302.5 |
| TPD260-32A-8D | 26.0–26.9 | 32 | 43 | 208 | 60 | 307.0 |
| TPD270-32A-8D | 27.0–27.9 | 32 | 43 | 216 | 60 | 317.0 |
| TPD280-32A-8D | 28.0–28.9 | 32 | 43 | 224 | 60 | 326.0 |
| TPD290-32A-8D | 29.0–29.9 | 32 | 43 | 232 | 60 | 336.0 |
| TPD300-32A-8D | 30.0–30.9 | 32 | 43 | 240 | 60 | 344.0 |
| TPD310-32A-8D | 31.0–31.9 | 32 | 43 | 248 | 60 | 354.0 |
| TPD320-32A-8D | 32.0–32.9 | 32 | 43 | 256 | 60 | 361.0 |

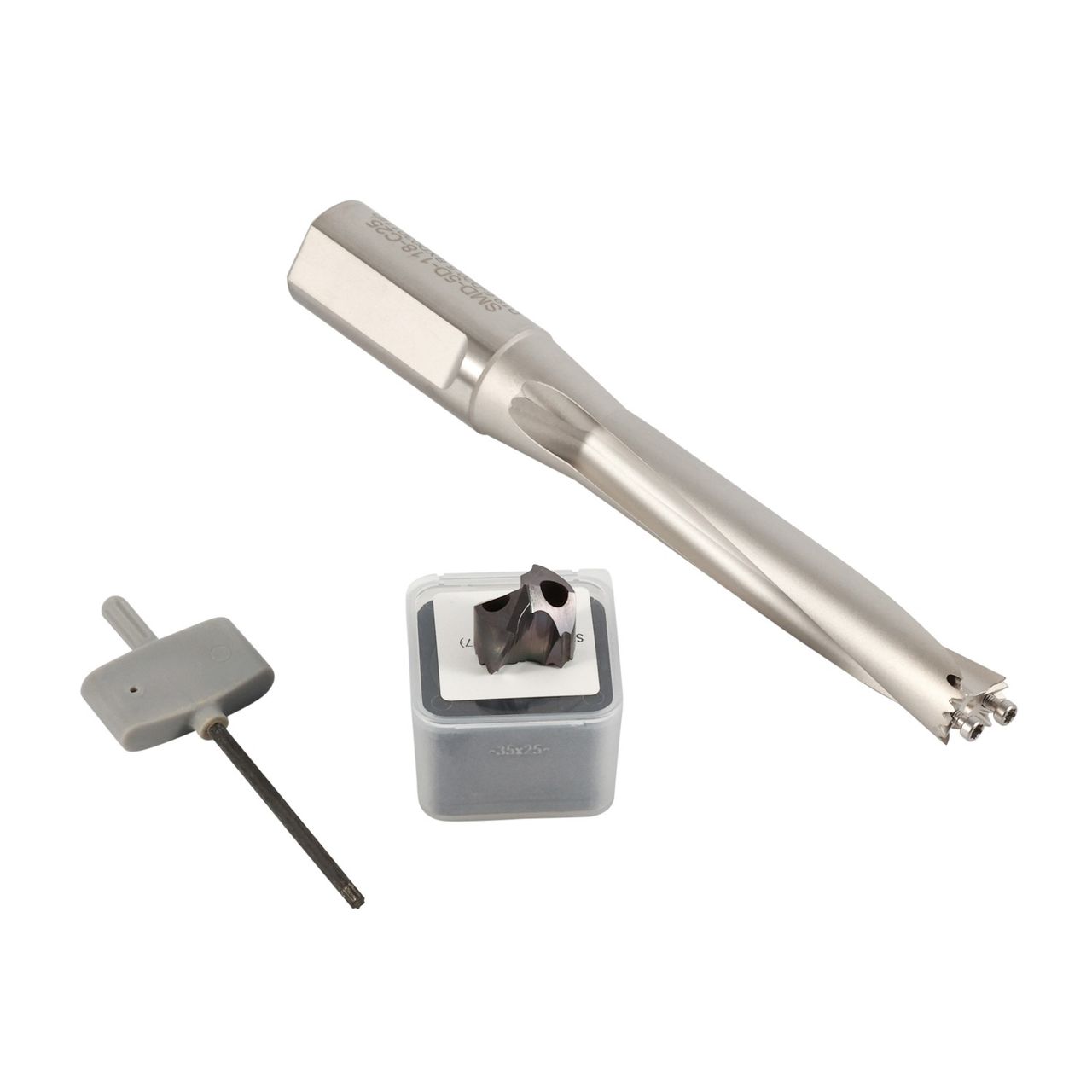

SMD two-screw crown drills
SMD drill bodies
Two-screw replaceable-tip drill bodies, tip diameter tolerance h7.
Show sizes
| Tip size DC (mm) | Depth | Order code | Drill. L1 (mm) | OAL L (mm) | Shank D1 (mm) | Shank L2 (mm) |
|---|---|---|---|---|---|---|
| 12.0–12.4 | 1.5D | SMD-1.5D-028-C16(12.0) | 28 | 91 | 16 | 48 |
| 12.0–12.4 | 3D | SMD-3D-046-C16(12.0) | 46 | 107 | 16 | 48 |
| 12.0–12.4 | 5D | SMD-5D-071-C16(12.0) | 71 | 132 | 16 | 48 |
| 12.5–12.9 | 1.5D | SMD-1.5D-028-C16(13.0) | 28 | 91 | 16 | 48 |
| 12.5–12.9 | 3D | SMD-3D-046-C16(13.0) | 46 | 107 | 16 | 48 |
| 12.5–12.9 | 5D | SMD-5D-071-C16(13.0) | 71 | 132 | 16 | 48 |
| 13.0–13.4 | 1.5D | SMD-1.5D-030-C16 | 30 | 92 | 16 | 48 |
| 13.0–13.4 | 3D | SMD-3D-049-C16 | 49 | 112 | 16 | 48 |
| 13.0–13.4 | 5D | SMD-5D-076-C16 | 76 | 142 | 16 | 48 |
| 13.5–14.5 | 1.5D | SMD-1.5D-034-C16 | 34 | 96 | 16 | 48 |
| 13.5–14.5 | 3D | SMD-3D-055-C16 | 55 | 119 | 16 | 48 |
| 13.5–14.5 | 5D | SMD-5D-084-C16 | 84 | 149 | 16 | 48 |
| 13.5–14.5 | 8D | SMD-8D-127-C16 | 127 | 194 | 16 | 48 |
| 13.5–14.5 | 12D | SMD-12D-171-C16 | 171 | 239 | 16 | 48 |
| 14.6–15.5 | 1.5D | SMD-1.5D-035-C20 | 35 | 100 | 20 | 50 |
| 14.6–15.5 | 3D | SMD-3D-058-C20 | 58 | 129 | 20 | 50 |
| 14.6–15.5 | 5D | SMD-5D-089-C20 | 89 | 159 | 20 | 50 |
| 14.6–15.5 | 8D | SMD-8D-136-C20 | 136 | 204 | 20 | 50 |
| 14.6–15.5 | 12D | SMD-12D-183-C20 | 183 | 253 | 20 | 50 |
| 15.6–16.5 | 1.5D | SMD-1.5D-038-C20 | 38 | 103 | 20 | 50 |
| 15.6–16.5 | 3D | SMD-3D-062-C20 | 62 | 134 | 20 | 50 |
| 15.6–16.5 | 5D | SMD-5D-095-C20 | 95 | 169 | 20 | 50 |
| 15.6–16.5 | 8D | SMD-8D-144-C20 | 144 | 214 | 20 | 50 |
| 15.6–16.5 | 12D | SMD-12D-195-C20 | 195 | 266 | 20 | 50 |
| 16.6–17.5 | 1.5D | SMD-1.5D-039-C20 | 39 | 105 | 20 | 50 |
| 16.6–17.5 | 3D | SMD-3D-066-C20 | 66 | 140 | 20 | 50 |
| 16.6–17.5 | 5D | SMD-5D-101-C20 | 101 | 175 | 20 | 50 |
| 16.6–17.5 | 8D | SMD-8D-154-C20 | 154 | 225 | 20 | 50 |
| 16.6–17.5 | 12D | SMD-12D-207-C20 | 207 | 278 | 20 | 50 |
| 17.6–18.5 | 1.5D | SMD-1.5D-043-C20 | 43 | 107 | 20 | 50 |
| 17.6–18.5 | 3D | SMD-3D-070-C20 | 70 | 145 | 20 | 50 |
| 17.6–18.5 | 5D | SMD-5D-107-C20 | 107 | 180 | 20 | 50 |
| 17.6–18.5 | 8D | SMD-8D-162-C20 | 162 | 230 | 20 | 50 |
| 17.6–18.5 | 12D | SMD-12D-219-C20 | 219 | 291 | 20 | 50 |
| 18.6–19.5 | 1.5D | SMD-1.5D-044-C25 | 44 | 115 | 25 | 56 |
| 18.6–19.5 | 3D | SMD-3D-073-C25 | 73 | 160 | 25 | 56 |
| 18.6–19.5 | 5D | SMD-5D-112-C25 | 112 | 195 | 25 | 56 |
| 18.6–19.5 | 8D | SMD-8D-171-C25 | 171 | 255 | 25 | 56 |
| 18.6–19.5 | 12D | SMD-12D-232-C25 | 232 | 309 | 25 | 56 |
| 19.6–20.5 | 1.5D | SMD-1.5D-047-C25 | 47 | 118 | 25 | 56 |
| 19.6–20.5 | 3D | SMD-3D-077-C25 | 77 | 160 | 25 | 56 |
| 19.6–20.5 | 5D | SMD-5D-118-C25 | 118 | 200 | 25 | 56 |
| 19.6–20.5 | 8D | SMD-8D-179-C25 | 179 | 270 | 25 | 56 |
| 19.6–20.5 | 12D | SMD-12D-244-C25 | 244 | 321 | 25 | 56 |
| 20.6–21.5 | 1.5D | SMD-1.5D-048-C25 | 48 | 119 | 25 | 56 |
| 20.6–21.5 | 3D | SMD-3D-080-C25 | 80 | 160 | 25 | 56 |
| 20.6–21.5 | 5D | SMD-5D-123-C25 | 123 | 200 | 25 | 56 |
| 20.6–21.5 | 8D | SMD-8D-188-C25 | 188 | 266 | 25 | 56 |
| 20.6–21.5 | 12D | SMD-12D-256-C25 | 256 | 334 | 25 | 56 |
| 21.6–22.8 | 1.5D | SMD-1.5D-051-C25 | 51 | 124 | 25 | 56 |
| 21.6–22.8 | 3D | SMD-3D-084-C25 | 84 | 165 | 25 | 56 |
| 21.6–22.8 | 5D | SMD-5D-129-C25 | 129 | 205 | 25 | 56 |
| 21.6–22.8 | 8D | SMD-8D-196-C25 | 196 | 275 | 25 | 56 |
| 21.6–22.8 | 12D | SMD-12D-268-C25 | 268 | 347 | 25 | 56 |
| 22.9–23.8 | 1.5D | SMD-1.5D-051-C25 | 51 | 122 | 25 | 56 |
| 22.9–23.8 | 3D | SMD-3D-087-C25 | 87 | 165 | 25 | 56 |
| 22.9–23.8 | 5D | SMD-5D-134-C25 | 134 | 215 | 25 | 56 |
| 22.9–23.8 | 8D | SMD-8D-205-C25 | 205 | 285 | 25 | 56 |
| 22.9–23.8 | 12D | SMD-12D-280-C25 | 280 | 359 | 25 | 56 |
| 23.9–24.8 | 1.5D | SMD-1.5D-054-C32 | 54 | 129 | 32 | 60 |
| 23.9–24.8 | 3D | SMD-3D-091-C32 | 91 | 175 | 32 | 60 |
| 23.9–24.8 | 5D | SMD-5D-140-C32 | 140 | 225 | 32 | 60 |
| 23.9–24.8 | 8D | SMD-8D-213-C32 | 213 | 300 | 32 | 60 |
| 23.9–24.8 | 12D | SMD-12D-292-C32 | 292 | 376 | 32 | 60 |
| 24.9–25.8 | 1.5D | SMD-1.5D-054-C32 | 54 | 129 | 32 | 60 |
| 24.9–25.8 | 3D | SMD-3D-093-C32 | 93 | 175 | 32 | 60 |
| 24.9–25.8 | 5D | SMD-5D-145-C32 | 145 | 230 | 32 | 60 |
| 24.9–25.8 | 8D | SMD-8D-222-C32 | 222 | 305 | 32 | 60 |
| 24.9–25.8 | 12D | SMD-12D-305-C32 | 305 | 388 | 32 | 60 |
| 25.9–26.8 | 1.5D | SMD-1.5D-057-C32 | 57 | 132 | 32 | 60 |
| 25.9–26.8 | 3D | SMD-3D-097-C32 | 97 | 180 | 32 | 60 |
| 25.9–26.8 | 5D | SMD-5D-151-C32 | 151 | 235 | 32 | 60 |
| 25.9–26.8 | 8D | SMD-8D-230-C32 | 230 | 315 | 32 | 60 |
| 26.9–27.8 | 1.5D | SMD-1.5D-058-C32 | 58 | 133 | 32 | 60 |
| 26.9–27.8 | 3D | SMD-3D-099-C32 | 99 | 180 | 32 | 60 |
| 26.9–27.8 | 5D | SMD-5D-156-C32 | 156 | 240 | 32 | 60 |
| 26.9–27.8 | 8D | SMD-8D-239-C32 | 239 | 325 | 32 | 60 |
| 27.9–28.8 | 1.5D | SMD-1.5D-060-C32 | 60 | 135 | 32 | 60 |
| 27.9–28.8 | 3D | SMD-3D-102-C32 | 102 | 185 | 32 | 60 |
| 27.9–28.8 | 5D | SMD-5D-162-C32 | 162 | 245 | 32 | 60 |
| 27.9–28.8 | 8D | SMD-8D-247-C32 | 247 | 330 | 32 | 60 |
| 28.9–29.8 | 1.5D | SMD-1.5D-061-C32 | 61 | 136 | 32 | 60 |
| 28.9–29.8 | 3D | SMD-3D-105-C32 | 105 | 190 | 32 | 60 |
| 28.9–29.8 | 5D | SMD-5D-167-C32 | 167 | 250 | 32 | 60 |
| 28.9–29.8 | 8D | SMD-8D-256-C32 | 256 | 340 | 32 | 60 |
| 29.9–30.8 | 1.5D | SMD-1.5D-064-C32 | 64 | 139 | 32 | 60 |
| 29.9–30.8 | 3D | SMD-3D-110-C32 | 110 | 191 | 32 | 60 |
| 29.9–30.8 | 5D | SMD-5D-173-C32 | 173 | 261 | 32 | 60 |
| 29.9–30.8 | 8D | SMD-8D-265-C32 | 265 | 351 | 32 | 60 |
| 31.0–32.0 | 3D | SMD-3D-116-C32 | 116 | 201 | 32 | 60 |
| 31.0–32.0 | 5D | SMD-5D-181-C32 | 181 | 266 | 32 | 60 |
| 31.0–32.0 | 8D | SMD-8D-276-C32 | 276 | 361 | 32 | 60 |
SMD tips
Show sizes
| Tip size DC (mm) | Hard materials (SMDT) | Soft materials (TCEA) |
|---|---|---|
| 12.0–12.5 | SMDT1200 / SMDT1250 | TCEA-1200 / TCEA-1250 |
| 13.0–13.5 | SMDT1300 / SMDT1350 | TCEA-1300 / TCEA-1350 |
| 14.0–14.5 | SMDT1400 / SMDT1450 | TCEA-1400 / TCEA-1450 |
| 15.0–15.5 | SMDT1500 / SMDT1550 | TCEA-1500 / TCEA-1550 |
| 16.0–16.5 | SMDT1600 / SMDT1650 | TCEA-1600 / TCEA-1650 |
| 17.0–17.5 | SMDT1700 / SMDT1750 | TCEA-1700 / TCEA-1750 |
| 18.0–18.5 | SMDT1800 / SMDT1850 | TCEA-1800 / TCEA-1850 |
| 19.0–19.5 | SMDT1900 / SMDT1950 | TCEA-1900 / TCEA-1950 |
| 20.0–20.5 | SMDT2000 / SMDT2050 | TCEA-2000 / TCEA-2050 |
| 21.0–21.5 | SMDT2100 / SMDT2150 | TCEA-2100 / TCEA-2150 |
| 22.0–22.5 | SMDT2200 / SMDT2250 | TCEA-2200 / TCEA-2250 |
| 23.0–23.5 | SMDT2300 / SMDT2350 | TCEA-2300 / TCEA-2350 |
| 24.0–24.5 | SMDT2400 / SMDT2450 | TCEA-2400 / TCEA-2450 |
| 25.0–25.5 | SMDT2500 / SMDT2550 | TCEA-2500 / TCEA-2550 |
| 26.0–26.5 | SMDT2600 / SMDT2650 | TCEA-2600 / TCEA-2650 |
| 27.0–27.5 | SMDT2700 / SMDT2750 | TCEA-2700 / TCEA-2750 |
| 28.0–28.5 | SMDT2800 / SMDT2850 | TCEA-2800 / TCEA-2850 |
| 29.0–29.5 | SMDT2900 / SMDT2950 | TCEA-2900 / TCEA-2950 |
| 30.0–30.5 | SMDT3000 / SMDT3050 | TCEA-3000 / TCEA-3050 |
| 31.0–31.5 | SMDT3100 / SMDT3150 | TCEA-3100 / TCEA-3150 |
| 32.0–32.5 | SMDT3200 / SMDT3250 | TCEA-3200 |
| 33.0–33.5 | SMDT3300 / SMDT3350 | — |
| 34.0–34.5 | SMDT3400 / SMDT3450 | — |
| 35.0–35.5 | SMDT3500 / SMDT3550 | — |
| 36.0–36.5 | SMDT3600 / SMDT3650 | — |
| 37.0–37.5 | SMDT3700 / SMDT3750 | — |
| 38.0–38.5 | SMDT3800 / SMDT3850 | — |
| 39.0–39.5 | SMDT3900 / SMDT3950 | — |
| 40.0–40.5 | SMDT4000 / SMDT4050 | — |
| 41.0 | SMDT4100 | — |
| 42.0 | SMDT4200 | — |
SMD screws and wrenches
Show sizes
| Tip size DC (mm) | Screw | Thread | Wrench |
|---|---|---|---|
| 12.0–15.5 | BXD02208IP | M2.2×7.5 | TRDR08IP |
| 15.6–18.5 | BXD02509IP | M2.5×9.0 | TRDR10IP |
| 18.6–21.5 | BXD03011IP | M3.0×10.5 | Confirm on inquiry |
| 21.6–24.8 | BXD03512IP | M3.5×11.5 | Confirm on inquiry |
| 24.9–25.8 | BXD04014IP | M4.0×12.4 | Confirm on inquiry |
| 25.9–27.8 | BXD04014IP | M4.0×12.4 | TRDR20IP |
| 27.9–32.0 | BXD04515IP | M4.5×15 | TRDR20IP |
HLD rear-locking crown drills (order codes KS-…)
HLD crown drill bodies (order codes KS-…)
Rear-locking replaceable-tip drill bodies; HLD crown drills are ordered with KS-… codes. Tip diameter tolerance h7.
Show sizes
| Tip size DC (mm) | Depth | Order code | OAL L (mm) | Flute L1 (mm) | Seat | Wrench |
|---|---|---|---|---|---|---|
| 12.50–12.99 | 3D | KS-12.5-3D-C16 | 123 | 52 | C | T6×180 |
| 12.50–12.99 | 5D | KS-12.5-5D-C16 | 148 | 78 | C | T6×180 |
| 12.50–12.99 | 7D | KS-12.5-7D-C16 | 173 | 104 | C | T6×290 |
| 12.50–12.99 | 10D | KS-12.5-10D-C16 | 191 | 143 | C | T6×290 |
| 12.50–12.99 | 12D | KS-12.5-12D-C16 | 240 | 156 | C | T6×291 |
| 13.00–13.50 | 3D | KS-13-3D-C16 | 125.5 | 54 | C | T6×180 |
| 13.00–13.50 | 5D | KS-13-5D-C16 | 151.5 | 81 | C | T6×180 |
| 13.00–13.50 | 7D | KS-13-7D-C16 | 177.5 | 108 | C | T6×290 |
| 13.00–13.50 | 10D | KS-13-10D-C16 | 216.5 | 148.5 | C | T6×290 |
| 13.00–13.50 | 12D | KS-13-12D-C16 | 247 | 162 | C | T6×291 |
| 13.51–13.99 | 3D | KS-13.5-3D-C16 | 128 | 56 | B | T6×180 |
| 13.51–13.99 | 5D | KS-13.5-5D-C16 | 155 | 84 | B | T6×180 |
| 13.51–13.99 | 7D | KS-13.5-7D-C16 | 182 | 112 | B | T6×290 |
| 13.51–13.99 | 10D | KS-13.5-10D-C16 | 222 | 154 | B | T6×290 |
| 13.51–13.99 | 12D | KS-13.5-12D-C16 | 254 | 168 | B | T6×291 |
| 14.00–14.50 | 3D | KS-14-3D-C16 | 129.5 | 58 | B | T6×180 |
| 14.00–14.50 | 5D | KS-14-5D-C16 | 157.5 | 87 | B | T6×180 |
| 14.00–14.50 | 7D | KS-14-7D-C16 | 185.5 | 116 | B | T6×290 |
| 14.00–14.50 | 10D | KS-14-10D-C16 | 227.5 | 159.5 | B | T6×290 |
| 14.00–14.50 | 12D | KS-14-12D-C16 | 261 | 174 | B | T6×291 |
| 14.51–14.99 | 3D | KS-14.5-3D-C20 | 137 | 60 | A | T6×180 |
| 14.51–14.99 | 5D | KS-14.5-5D-C20 | 166 | 90 | A | T6×180 |
| 14.51–14.99 | 7D | KS-14.5-7D-C20 | 195 | 120 | A | T6×290 |
| 14.51–14.99 | 10D | KS-14.5-10D-C20 | 239 | 165 | A | T6×290 |
| 14.51–14.99 | 12D | KS-14.5-12D-C20 | 267 | 180 | A | T6×291 |
| 15.00–15.99 | 3D | KS-15-3D-C20 | 141 | 64 | A | T6×180 |
| 15.00–15.99 | 5D | KS-15-5D-C20 | 171 | 96 | A | T6×180 |
| 15.00–15.99 | 7D | KS-15-7D-C20 | 201 | 128 | A | T6×290 |
| 15.00–15.99 | 10D | KS-15-10D-C20 | 246 | 176 | A | T6×290 |
| 15.00–15.99 | 12D | KS-15-12D-C20 | 281 | 192 | A | T6×291 |
| 16.00–16.99 | 3D | KS-16-3D-C20 | 149 | 68 | 1 | 1.5×180 |
| 16.00–16.99 | 5D | KS-16-5D-C20 | 181 | 102 | 1 | 1.5×180 |
| 16.00–16.99 | 7D | KS-16-7D-C20 | 213 | 136 | 1 | 1.5×330 |
| 16.00–16.99 | 10D | KS-16-10D-C20 | 261 | 187 | 1 | 1.5×330 |
| 16.00–16.99 | 12D | KS-16-12D-C20 | 294 | 204 | 1 | 1.5×350 |
| 17.00–18.00 | 3D | KS-17-3D-C20 | 154 | 72 | 1 | 1.5×180 |
| 17.00–18.00 | 5D | KS-17-5D-C20 | 188 | 108 | 1 | 1.5×180 |
| 17.00–18.00 | 7D | KS-17-7D-C20 | 222 | 144 | 1 | 1.5×330 |
| 17.00–18.00 | 10D | KS-17-10D-C20 | 273 | 198 | 1 | 1.5×330 |
| 17.00–18.00 | 12D | KS-17-12D-C20 | 307.5 | 216 | 1 | 1.5×350 |
| 18.01–18.99 | 3D | KS-18-3D-C25 | 157 | 76 | 2 | 2.0×210 |
| 18.01–18.99 | 5D | KS-18-5D-C25 | 193 | 114 | 2 | 2.0×210 |
| 18.01–18.99 | 7D | KS-18-7D-C25 | 229 | 152 | 2 | 2.0×280 |
| 18.01–18.99 | 10D | KS-18-10D-C25 | 293 | 209 | 2 | 2.0×280 |
| 18.01–18.99 | 12D | KS-18-12D-C25 | 328 | 228 | 2 | 2.0×410 |
| 19.00–19.99 | 3D | KS-19-3D-C25 | 171 | 80 | 2 | 2.0×210 |
| 19.00–19.99 | 5D | KS-19-5D-C25 | 209 | 120 | 2 | 2.0×210 |
| 19.00–19.99 | 7D | KS-19-7D-C25 | 247 | 160 | 2 | 2.0×280 |
| 19.00–19.99 | 10D | KS-19-10D-C25 | 304 | 220 | 2 | 2.0×280 |
| 19.00–19.99 | 12D | KS-19-12D-C25 | 341 | 240 | 2 | 2.0×410 |
| 20.00–20.99 | 3D | KS-20-3D-C25 | 179 | 84 | 3 | 2.0×210 |
| 20.00–20.99 | 5D | KS-20-5D-C25 | 219 | 126 | 3 | 2.0×210 |
| 20.00–20.99 | 7D | KS-20-7D-C25 | 259 | 168 | 3 | 2.0×280 |
| 20.00–20.99 | 10D | KS-20-10D-C25 | 319 | 231 | 3 | 2.0×280 |
| 20.00–20.99 | 12D | KS-20-12D-C25 | 355 | 252 | 3 | 2.0×410 |
| 21.00–22.00 | 3D | KS-21-3D-C25 | 179.5 | 88 | 3 | 2.0×210 |
| 21.00–22.00 | 5D | KS-21-5D-C25 | 221.5 | 132 | 3 | 2.0×210 |
| 21.00–22.00 | 7D | KS-21-7D-C25 | 263.5 | 176 | 3 | 2.0×280 |
| 21.00–22.00 | 10D | KS-21-10D-C25 | 326.5 | 242 | 3 | 2.0×370 |
| 21.00–22.00 | 12D | KS-21-12D-C25 | 368 | 264 | 3 | 2.0×410 |
| 22.01–22.99 | 3D | KS-22-3D-C25 | 184 | 92 | 4 | 2.0×210 |
| 22.01–22.99 | 5D | KS-22-5D-C25 | 228 | 138 | 4 | 2.0×210 |
| 22.01–22.99 | 7D | KS-22-7D-C25 | 272 | 184 | 4 | 2.0×280 |
| 22.01–22.99 | 10D | KS-22-10D-C25 | 338 | 253 | 4 | 2.0×370 |
| 22.01–22.99 | 12D | KS-22-12D-C25 | 381.5 | 276 | 4 | 2.0×410 |
| 23.00–24.00 | 3D | KS-23-3D-C25 | 188.5 | 96 | 4 | 2.0×210 |
| 23.00–24.00 | 5D | KS-23-5D-C25 | 234.5 | 144 | 4 | 2.0×210 |
| 23.00–24.00 | 7D | KS-23-7D-C25 | 280.5 | 192 | 4 | 2.0×280 |
| 23.00–24.00 | 10D | KS-23-10D-C25 | 349.5 | 264 | 4 | 2.0×370 |
| 23.00–24.00 | 12D | KS-23-12D-C25 | 395 | 288 | 4 | 2.0×410 |
| 24.01–24.99 | 3D | KS-24-3D-C32 | 198 | 100 | 5 | 2.5×240 |
| 24.01–24.99 | 5D | KS-24-5D-C32 | 246 | 150 | 5 | 2.5×240 |
| 24.01–24.99 | 7D | KS-24-7D-C32 | 294 | 200 | 5 | 2.5×320 |
| 24.01–24.99 | 10D | KS-24-10D-C32 | 366 | 275 | 5 | 2.5×420 |
| 24.01–24.99 | 12D | KS-24-12D-C32 | 418 | 300 | 5 | 2.5×460 |
| 25.00–26.00 | 3D | KS-25-3D-C32 | 202 | 104 | 5 | 2.5×240 |
| 25.00–26.00 | 5D | KS-25-5D-C32 | 252 | 156 | 5 | 2.5×240 |
| 25.00–26.00 | 7D | KS-25-7D-C32 | 302 | 208 | 5 | 2.5×320 |
| 25.00–26.00 | 10D | KS-25-10D-C32 | 377 | 286 | 5 | 2.5×420 |
| 25.00–26.00 | 12D | KS-25-12D-C32 | 432 | 312 | 5 | 2.5×460 |
| 26.01–26.99 | 3D | KS-26-3D-C32 | 206.5 | 108 | 6 | 2.5×240 |
| 26.01–26.99 | 5D | KS-26-5D-C32 | 258.5 | 162 | 6 | 2.5×240 |
| 26.01–26.99 | 7D | KS-26-7D-C32 | 310.5 | 216 | 6 | 2.5×320 |
| 26.01–26.99 | 10D | KS-26-10D-C32 | 388.5 | 297 | 6 | 2.5×420 |
| 26.01–26.99 | 12D | KS-26-12D-C32 | 445 | 324 | 6 | 2.5×460 |
| 27.00–28.00 | 3D | KS-27-3D-C32 | 210.5 | 112 | 6 | 2.5×240 |
| 27.00–28.00 | 5D | KS-27-5D-C32 | 264.5 | 168 | 6 | 2.5×240 |
| 27.00–28.00 | 7D | KS-27-7D-C32 | 318.5 | 224 | 6 | 2.5×320 |
| 27.00–28.00 | 10D | KS-27-10D-C32 | 399.5 | 308 | 6 | 2.5×420 |
| 27.00–28.00 | 12D | KS-27-12D-C32 | 458.5 | 336 | 6 | 2.5×460 |
| 28.01–28.99 | 3D | KS-28-3D-C32 | 215.5 | 116 | 7 | 3.0×350 |
| 28.01–28.99 | 5D | KS-28-5D-C32 | 271.5 | 174 | 7 | 3.0×350 |
| 28.01–28.99 | 7D | KS-28-7D-C32 | 327.5 | 232 | 7 | 3.0×450 |
| 28.01–28.99 | 10D | KS-28-10D-C32 | 411.5 | 319 | 7 | 3.0×515 |
| 28.01–28.99 | 12D | KS-28-12D-C32 | 472 | 348 | 7 | 3.0×530 |
| 29.00–30.00 | 3D | KS-29-3D-C32 | 219.5 | 120 | 7 | 3.0×350 |
| 29.00–30.00 | 5D | KS-29-5D-C32 | 277.5 | 180 | 7 | 3.0×350 |
| 29.00–30.00 | 7D | KS-29-7D-C32 | 335.5 | 240 | 7 | 3.0×450 |
| 29.00–30.00 | 10D | KS-29-10D-C32 | 422.5 | 330 | 7 | 3.0×515 |
| 29.00–30.00 | 12D | KS-29-12D-C32 | 485 | 360 | 7 | 3.0×530 |
| 30.01–30.99 | 3D | KS-30-3D-C32 | 224.5 | 124 | 8 | 3.0×350 |
| 30.01–30.99 | 5D | KS-30-5D-C32 | 284.5 | 186 | 8 | 3.0×350 |
| 30.01–30.99 | 7D | KS-30-7D-C32 | 344.5 | 248 | 8 | 3.0×450 |
| 30.01–30.99 | 10D | KS-30-10D-C32 | 434.5 | 341 | 8 | 3.0×515 |
| 30.01–30.99 | 12D | KS-30-12D-C32 | 496 | 372 | 8 | 3.0×530 |
| 31.00–32.00 | 3D | KS-31-3D-C32 | 229 | 128 | 8 | 3.0×350 |
| 31.00–32.00 | 5D | KS-31-5D-C32 | 291 | 192 | 8 | 3.0×350 |
| 31.00–32.00 | 7D | KS-31-7D-C32 | 353 | 256 | 8 | 3.0×450 |
| 31.00–32.00 | 10D | KS-31-10D-C32 | 446 | 352 | 8 | 3.0×515 |
| 31.00–32.00 | 12D | KS-31-12D-C32 | 508 | 384 | 8 | 3.0×530 |
| 32.01–32.99 | 3D | KS-32-3D-C40 | 249.5 | 132 | 9 | 3.0×350 |
| 32.01–32.99 | 5D | KS-32-5D-C40 | 313.5 | 198 | 9 | 3.0×350 |
| 32.01–32.99 | 7D | KS-32-7D-C40 | 377.5 | 264 | 9 | 3.0×450 |
| 32.01–32.99 | 10D | KS-32-10D-C40 | 473.5 | 363 | 9 | 3.0×515 |
| 32.01–32.99 | 12D | KS-32-12D-C40 | 526 | 396 | 9 | 3.0×600 |
| 33.00–33.99 | 3D | KS-33-3D-C40 | 257 | 136 | 9 | 3.0×350 |
| 33.00–33.99 | 5D | KS-33-5D-C40 | 323 | 204 | 9 | 3.0×350 |
| 33.00–33.99 | 7D | KS-33-7D-C40 | 389 | 272 | 9 | 3.0×450 |
| 33.00–33.99 | 10D | KS-33-10D-C40 | 488 | 374 | 9 | 3.0×515 |
| 33.00–33.99 | 12D | KS-33-12D-C40 | 538 | 408 | 9 | 3.0×600 |
| 34.00–34.99 | 3D | KS-34-3D-C40 | 258.5 | 140 | 9 | 3.0×350 |
| 34.00–34.99 | 5D | KS-34-5D-C40 | 326.5 | 210 | 9 | 3.0×350 |
| 34.00–34.99 | 7D | KS-34-7D-C40 | 394.5 | 280 | 9 | 3.0×450 |
| 34.00–34.99 | 10D | KS-34-10D-C40 | 496.5 | 385 | 9 | 3.0×515 |
| 34.00–34.99 | 12D | KS-34-12D-C40 | 550 | 420 | 9 | 3.0×600 |
| 35.00–36.00 | 3D | KS-35-3D-C40 | 263.5 | 144 | 9 | 3.0×350 |
| 35.00–36.00 | 5D | KS-35-5D-C40 | 333.5 | 216 | 9 | 3.0×350 |
| 35.00–36.00 | 7D | KS-35-7D-C40 | 403.5 | 288 | 9 | 3.0×450 |
| 35.00–36.00 | 10D | KS-35-10D-C40 | 508.5 | 396 | 9 | 3.0×515 |
| 35.00–36.00 | 12D | KS-35-12D-C40 | 562 | 432 | 9 | 3.0×600 |
| 36.01–36.99 | 3D | KS-36-3D-C40 | 269 | 148 | 10 | 3.0×350 |
| 36.01–36.99 | 5D | KS-36-5D-C40 | 341 | 222 | 10 | 3.0×350 |
| 36.01–36.99 | 7D | KS-36-7D-C40 | 413 | 296 | 10 | 3.0×450 |
| 36.01–36.99 | 10D | KS-36-10D-C40 | 521 | 407 | 10 | 3.0×515 |
| 36.01–36.99 | 12D | KS-36-12D-C40 | 574 | 444 | 10 | 3.0×600 |
| 37.00–37.99 | 3D | KS-37-3D-C40 | 272.5 | 152 | 10 | 3.0×350 |
| 37.00–37.99 | 5D | KS-37-5D-C40 | 346.5 | 228 | 10 | 3.0×350 |
| 37.00–37.99 | 7D | KS-37-7D-C40 | 420.5 | 304 | 10 | 3.0×450 |
| 37.00–37.99 | 10D | KS-37-10D-C40 | 531.5 | 418 | 10 | 3.0×515 |
| 37.00–37.99 | 12D | KS-37-12D-C40 | 586 | 456 | 10 | 3.0×600 |
| 38.00–38.99 | 3D | KS-38-3D-C40 | 277 | 156 | 10 | 3.0×350 |
| 38.00–38.99 | 5D | KS-38-5D-C40 | 353 | 234 | 10 | 3.0×350 |
| 38.00–38.99 | 7D | KS-38-7D-C40 | 429 | 312 | 10 | 3.0×450 |
| 38.00–38.99 | 10D | KS-38-10D-C40 | 543 | 429 | 10 | 3.0×515 |
| 38.00–38.99 | 12D | KS-38-12D-C40 | 598 | 468 | 10 | 3.0×600 |
| 39.00–39.99 | 3D | KS-39-3D-C40 | 282 | 160 | 10 | 3.0×350 |
| 39.00–39.99 | 5D | KS-39-5D-C40 | 360 | 240 | 10 | 3.0×350 |
| 39.00–39.99 | 7D | KS-39-7D-C40 | 438 | 320 | 10 | 3.0×450 |
| 39.00–39.99 | 10D | KS-39-10D-C40 | 555 | 440 | 10 | 3.0×515 |
| 39.00–39.99 | 12D | KS-39-12D-C40 | 610 | 480 | 10 | 3.0×600 |
| 40.00–40.99 | 3D | KS-40-3D-C40 | 286 | 164 | 10 | 3.0×350 |
| 40.00–40.99 | 5D | KS-40-5D-C40 | 366 | 246 | 10 | 3.0×350 |
| 40.00–40.99 | 7D | KS-40-7D-C40 | 446 | 328 | 10 | 3.0×450 |
| 40.00–40.99 | 10D | KS-40-10D-C40 | 566 | 451 | 10 | 3.0×600 |
| 41.00–41.99 | 3D | KS-41-3D-C40 | — | 168 | 11 | 3.0×350 |
| 41.00–41.99 | 5D | KS-41-5D-C40 | — | 252 | 11 | 3.0×350 |
| 41.00–41.99 | 7D | KS-41-7D-C40 | — | 336 | 11 | 3.0×350 |
| 41.00–41.99 | 10D | KS-41-10D-C40 | — | 462 | 11 | 3.0×350 |
| 42.00–42.99 | 3D | KS-42-3D-C40 | — | 172 | 11 | 3.0×350 |
| 42.00–42.99 | 5D | KS-42-5D-C40 | — | 258 | 11 | 3.0×350 |
| 42.00–42.99 | 7D | KS-42-7D-C40 | — | 344 | 11 | 3.0×350 |
| 42.00–42.99 | 10D | KS-42-10D-C40 | — | 473 | 11 | 3.0×350 |
| 43.00–43.99 | 3D | KS-43-3D-C40 | — | 176 | 11 | 3.0×350 |
| 43.00–43.99 | 5D | KS-43-5D-C40 | — | 264 | 11 | 3.0×350 |
| 43.00–43.99 | 7D | KS-43-7D-C40 | — | 352 | 11 | 3.0×350 |
| 43.00–43.99 | 10D | KS-43-10D-C40 | — | 484 | 11 | 3.0×350 |
| 44.00–45.00 | 3D | KS-44-3D-C40 | — | 180 | 11 | 3.0×350 |
| 44.00–45.00 | 5D | KS-44-5D-C40 | — | 270 | 11 | 3.0×350 |
| 44.00–45.00 | 7D | KS-44-7D-C40 | — | 360 | 11 | 3.0×350 |
| 44.00–45.00 | 10D | KS-44-10D-C40 | — | 495 | 11 | 3.0×350 |
| 45.01–45.99 | 3D | KS-45-3D-C40 | — | 184 | Confirm on inquiry | 3.0×350 |
| 45.01–45.99 | 5D | KS-45-5D-C40 | — | 276 | Confirm on inquiry | 3.0×350 |
| 45.01–45.99 | 7D | KS-45-7D-C40 | — | 368 | Confirm on inquiry | 3.0×350 |
| 45.01–45.99 | 10D | KS-45-10D-C40 | — | 506 | Confirm on inquiry | 3.0×350 |
| 46.00–46.99 | 3D | KS-46-3D-C40 | — | 188 | 12 | 3.0×350 |
| 46.00–46.99 | 5D | KS-46-5D-C40 | — | 282 | 12 | 3.0×350 |
| 46.00–46.99 | 7D | KS-46-7D-C40 | — | 376 | 12 | 3.0×350 |
| 46.00–46.99 | 10D | KS-46-10D-C40 | — | 517 | 12 | 3.0×350 |
| 47.00–47.99 | 3D | KS-47-3D-C40 | — | 192 | 12 | 3.0×350 |
| 47.00–47.99 | 5D | KS-47-5D-C40 | — | 288 | 12 | 3.0×350 |
| 47.00–47.99 | 7D | KS-47-7D-C40 | — | 384 | 12 | 3.0×350 |
| 47.00–47.99 | 10D | KS-47-10D-C40 | — | 528 | 12 | 3.0×350 |
| 48.00–48.99 | 3D | KS-48-3D-C40 | — | 196 | 12 | 3.0×350 |
| 48.00–48.99 | 5D | KS-48-5D-C40 | — | 294 | 12 | 3.0×350 |
| 48.00–48.99 | 7D | KS-48-7D-C40 | — | 392 | 12 | 3.0×350 |
| 48.00–48.99 | 10D | KS-48-10D-C40 | — | 539 | 12 | 3.0×350 |
| 49.00–49.99 | 3D | KS-49-3D-C40 | — | 200 | 12 | 3.0×350 |
| 49.00–49.99 | 5D | KS-49-5D-C40 | — | 300 | 12 | 3.0×350 |
| 49.00–49.99 | 7D | KS-49-7D-C40 | — | 400 | 12 | 3.0×350 |
| 49.00–49.99 | 10D | KS-49-10D-C40 | — | 550 | 12 | 3.0×350 |
| 50.00–50.99 | 3D | KS-50-3D-C40 | — | 204 | 12 | 3.0×350 |
| 50.00–50.99 | 5D | KS-50-5D-C40 | — | 306 | 12 | 3.0×350 |
| 50.00–50.99 | 7D | KS-50-7D-C40 | — | 408 | 12 | 3.0×350 |
| 50.00–50.99 | 10D | KS-50-10D-C40 | — | 561 | 12 | 3.0×350 |
| 51.00–52.00 | 3D | KS-51-3D-C40 | — | 208 | 12 | 3.0×350 |
| 51.00–52.00 | 5D | KS-51-5D-C40 | — | 312 | 12 | 3.0×350 |
| 51.00–52.00 | 7D | KS-51-7D-C40 | — | 416 | 12 | 3.0×350 |
| 51.00–52.00 | 10D | KS-51-10D-C40 | — | 572 | 12 | 3.0×350 |
HLD tip seats
Show sizes
| Tip dia. D (mm) | Seat size | Tip series | Locking screw |
|---|---|---|---|
| 10.00–11.99 | Z | HD / HP | M2.0×7.5 |
| 12.00–12.99 | Y | HD / HP | M2.2×7.5 |
| 12.50–13.50 | C | HD / HP | M3.0/M2.5×14 |
| 13.51–14.50 | B | HD / HP | M3.0/M2.5×14 |
| 14.51–15.99 | A | HD / HP | M3.0/M2.5×14 |
| 16.00–18.00 | 1 | HD / HP | M3.5/M2.5×16 |
| 18.01–19.99 | 2 | HD / HP | M4.0/M3.0×19 |
| 20.00–22.00 | 3 | HD / HP | M4.0/M3.0×19 |
| 22.01–24.00 | 4 | HD / HP | M4.0/M3.0×19 |
| 24.01–26.00 | 5 | HD / HP | M5.0/M4.0×23 |
| 26.01–28.00 | 6 | HD / HP | M5.0/M4.0×23 |
| 28.01–30.00 | 7 | HD / HP | M6.0/M5.0×28 |
| 30.01–32.00 | 8 | HD / HP | M6.0/M5.0×28 |
| 32.01–36.00 | 9 | HD / HP | M6.0/M6.0×32 |
| 36.01–40.99 | 10 | HD / HP | M6.0/M6.0×32 |
| 41.00–45.00 | 11 | HD / HP | M6.0/M6.0×32 |
| 45.01–52.00 | Confirm on inquiry | HD / HP | M6.0/M6.0×32 |
Ordering and delivery
- Minimum order
- 5 pieces per size
- Lead time
- Stock items ship in 3 days; custom tools 15–30 working days.
- Payment
- T/T. Production starts once the deposit is received.
- Shipping
- By express, air or sea; terms agreed with you.
Free samples — tell us the tool and size, and we will confirm the details with you before shipping.
Request a free samplePackaging
- Every tool is packed on its own: a tip cap protects the cutting edge, and each shank tool sits in its own reusable tube, sized to the shank and length and labelled for your order.
- Micro tools (drills and end mills below about Φ3) go in micro tubes that hold the tool without touching the edge.
- Inserts and crown drill tips are packed in slotted insert boxes, 10 per box for standard inserts.
- Tubes are grouped in 5- or 10-piece boxes, then packed in export cartons sized to the order; reinforced or palletised packing for sea freight on request.
Questions about ordering
What is the minimum order?
5 pieces per size, for standard and made-to-drawing tools.
How long is the lead time?
Stock items ship in 3 days. Custom tools take 15–30 working days after the order and the drawing are confirmed, depending on the tool. Some standard sizes are in stock; we confirm stock when we quote.
How do I pay?
T/T. Production starts once the deposit is received.
How do you ship?
By express, air or sea; terms agreed with you.
Can you make a tool to my drawing?
Yes. Send a drawing, a photo of a sample or the tool you use now. We confirm the geometry and the drawing with you before production; 3D design support and OEM / ODM orders are available.
Are the tools inspected before shipment?
Yes. Tools are inspected before shipment.
What should I send for a quote?
The order code or a drawing, the workpiece material and the quantity. Custom quote checklist →
How quickly do you reply?
We reply within one working day, Monday to Friday, China time.
Catalog pages for this range
- Chapter 02 · Replaceable-tip drills PDF · 19 pages · 1.6 MB
Edition: October 2026. Free to download, no sign-up. All catalog downloads →
